VERTICAL BAND RESAW HYDRAULIC SYSTEM

Model: TF-900

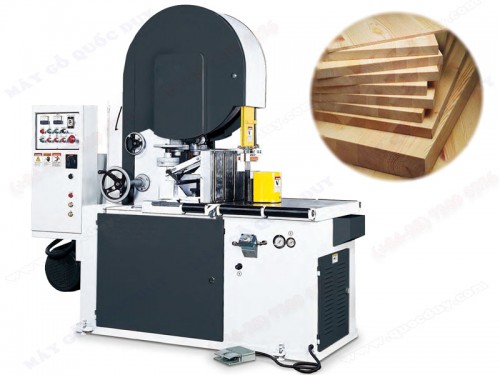

may-cua-long-dung-thuy-luc-tf900
 Features

General Features and Construction:
•    Moving workplaces easily, it doesn't need to build up a foundation.
•    The saw tension can be read from the tension indicator.
•    A principle of counterbalance weight controls the blade tension.
•    A handwheel is also provides for micrometrical adjustment.
•    Bakelite of saw guide ensures a high wear resistance.
•    The high speed steel upper wheel and the casting iron lower wheel both are dynamically balaneed that makes the machine run extremely smooth.
•    Bronze pieces are provided for wheel cleaning.
Automatic Features and Construction:
•    The feed speed is operated by a hydraulic system which makes the machine suitable for cutting various types of lumber.
•    Feed rollers' movements are actuated by an air and hydraulic combination system.
•    The feed rollers can be switched to an automatic or semi-automatic system. It can save more time when works are cutting different sizes of lumber.
•    The power elevation of the upper wheel makes users easy to replace the blade. A handwheel is also provided for micrometrical adjustment.

Specifications
Cutting capacity
: 550x 550 mm
Distance from fence to blade
230 mm
Distance from feed roller to blade
320 mm
Wheel diameter
36"
Wheel width
3-1/2"
Width of blade
4"
Length of blade
5760 mm
Feed speed (Variable)
37 M/min
Wheel drive motor
15-20HP
Hydraulic pump motor
2HP
Net weight
2000kgs
Gross weight
2200kgs
Machine size
2550x 1510x 2250 mm
