HYDRAULIC VERTICAL MULTIPLE SPINDLE BORING
hydraulic vertical multiple spindle boring s manufactured from high quality cast iron. Major components and machine frame are made from high grade cast-iron...
- :SV-308
- :Taiwan
- :12 Months
- :Call
- :
 |  |

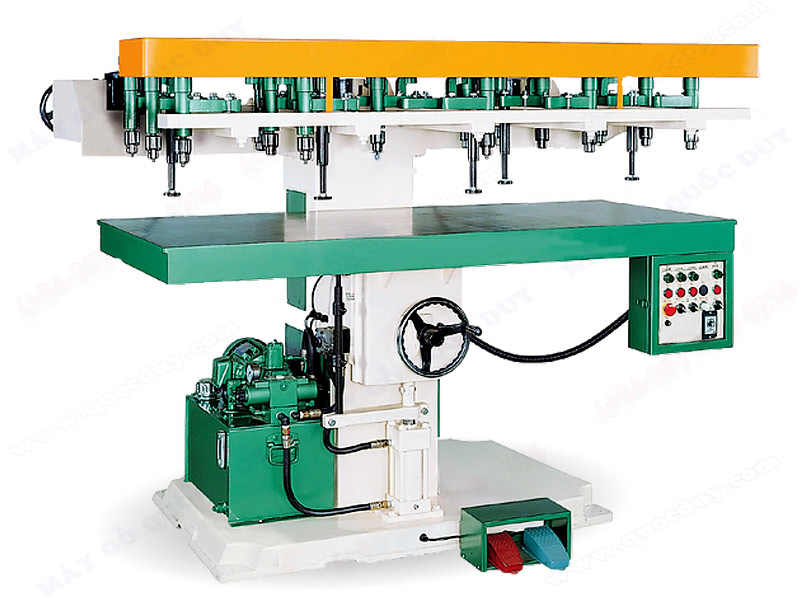

HYDRAULIC VERTICAL MULTIPLE SPINDLE BORING
Model: SV - 308
|
The machine base is manufactured from high quality cast iron. (FC 25-30) Major components and machine frame are made from high grade cast-iron. A hydraulically operated model. Hydraulic control system. Multiple spindles can be easily adjusted for various boring positions. Easy operation and minimum maintenance. |
|
|
Specifications
|
|
|
Spindle motor
|
2 HP x 3
|
|
Spindle speed
|
3700 rpm
|
|
Number of spindle
|
16 pcs
|
|
Number of idler wheel
|
8
|
|
Hold down clamp
|
6 pcs
|
|
Table area
|
900 x 2400 mm
|
|
Hydraulic pump motor
|
2 HP
|
|
Max table travel
|
100 mm
|
|
Max boring depth
|
90 mm
|
|
Min.distance between drills
|
50mm
|
|
Machine size
|
2700 x 1810 x 1800 mm
|
|
Net weight
|
1500 kgs
|
|
Gross weight
|
1720 kgs
|
