NESTING CNC ROUTER

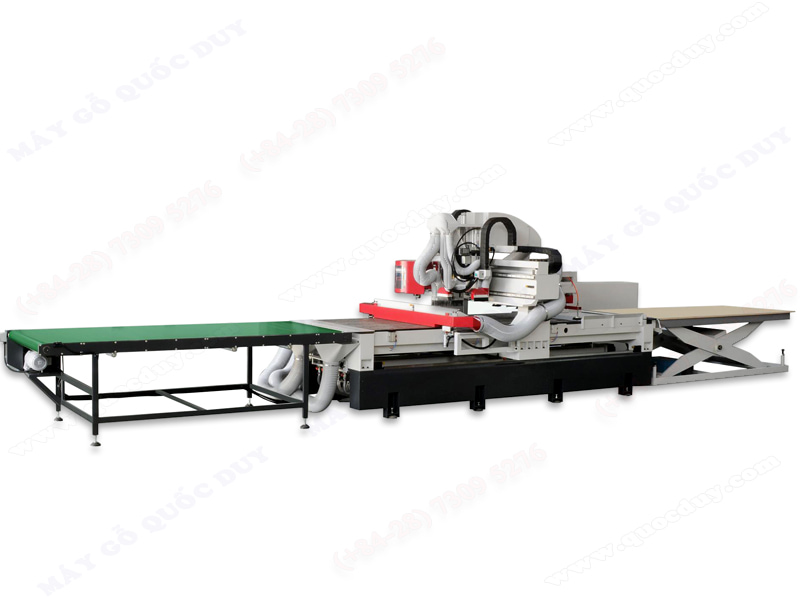

The machine is equipped with auto feeding system, auto labeling system and vacuum function. The productivity is increasing with the auto conveyor belt feeding system, the panel can be cutter and bored in the optimizing way.
- :YL-12242 R+B+U+N
- :Taiwan
- :12 Months
- :Call
- :
 |  |
NESTING CNC ROUTER
Model: YL-12242 R+B+U+N
|
Specification
|
|
|
Max.working size
|
: 1220 x 2440 mm
|
|
TRAVEL
|
|
|
X-axis travel
|
: 1720 mm
|
|
Y-axis travel
|
: 2870 mm
|
|
Z-axis travel
|
: 280 mm
|
|
Spindle nose to table
|
: 210 mm
|
|
Distance between columns
|
: 1387 mm
|
|

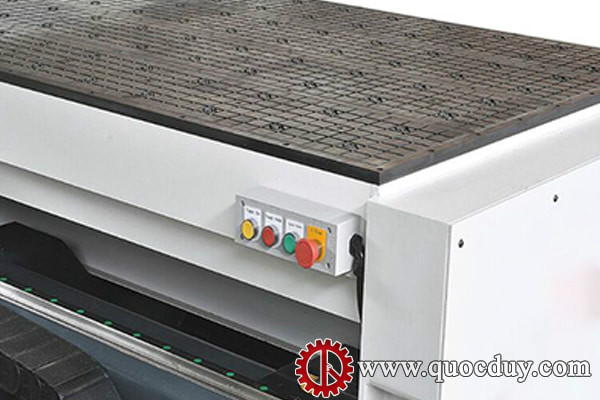

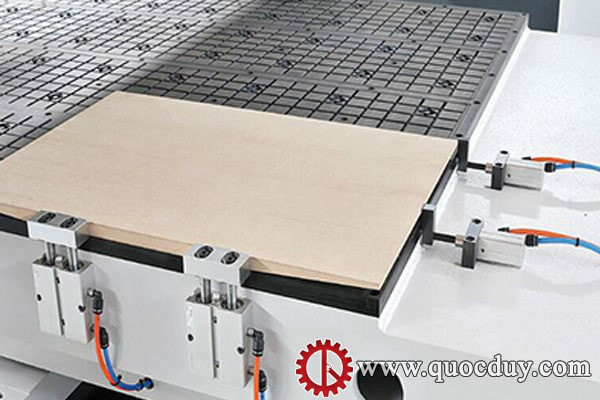

TABLE WORKING
|
|
|
Working table size
|
: 1277 x 2500 mm
|
|
SPEED
|
|
|
Cutting feed
|
: 8 m/min
|
|
X-axis speed travel
|
: 40 m/min
|
|
Y-axis speed travel
|
: 40 m/min
|
|
Z-axis speed travel
|
: 10 m/min
|
|

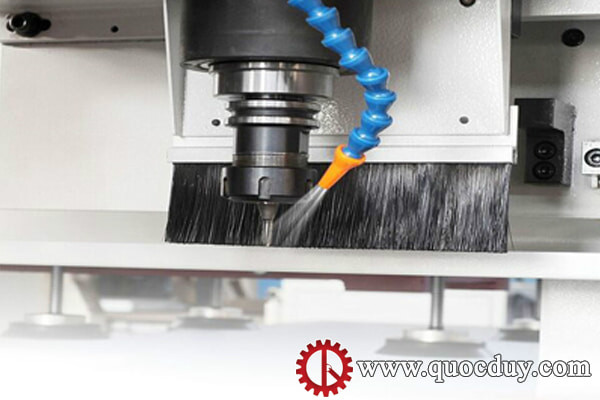

SPINDLE
|
|
|
Spindle speed
|
: 1000~24000 rpm
|
|
Diameter spindle
|
: ISO 30
|
|
ATC
|
|
|
Tool shank
|
: ER 32
|
|
Collet
|
: 8 pcs
|
|
Shelf
|
: 8 pcs
|
|
BORING UNIT
|
|
|
Power
|
: 2.5 Hp (Origin : Taiwan) boring unit 9V+4H+2S
|
|
Vertical spindles
|
: 9 pcs (5 in X - axis, 4 in Y - axis)
|
|
Horizontal spindles
|
: 4 pcs (2 in X - axis, 2 in Y - axis)
|
|
Max. saw blade Ø120mm
|
: 2 pcs (1 in X-axis, 1 in Y-axis)
|
|
CUTTER
|
|
|
Feedrate size
|
: 3~80 mm
|
|
Tool retraction size
|
: 3~20 mm
|
|
MOTOR
|
|
|
Spindle motor (Made in Italy)
|
: 8 Kw
|
|
X-axis motor servo
|
: 1.5 Kw (DELTA ASDA-A2)
|
|
Y-axis motor servo
|
: 3 Kw (DELTA ASDA-A2)
|
|
Z-axis motor servo
|
: 1.5 Kw(DELTA ASDA-A2)
|
|
Vacuum pump motor
|
: 5.5 Kw
|
|
OTHERS
|
|
|
Air pressure required
|
: 6 kgf/cm²
|
|
Machine size
|
: 2260 x 4350 x 2060 mm
|
|
Package weight
|
: 6000 Kg
|
|
