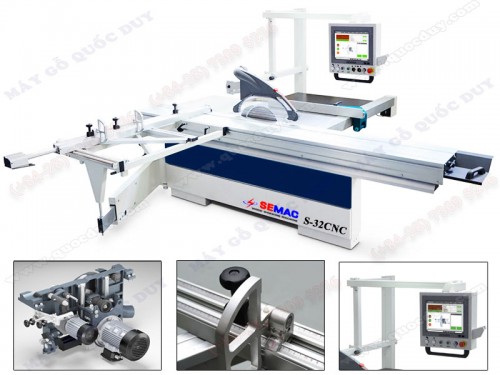

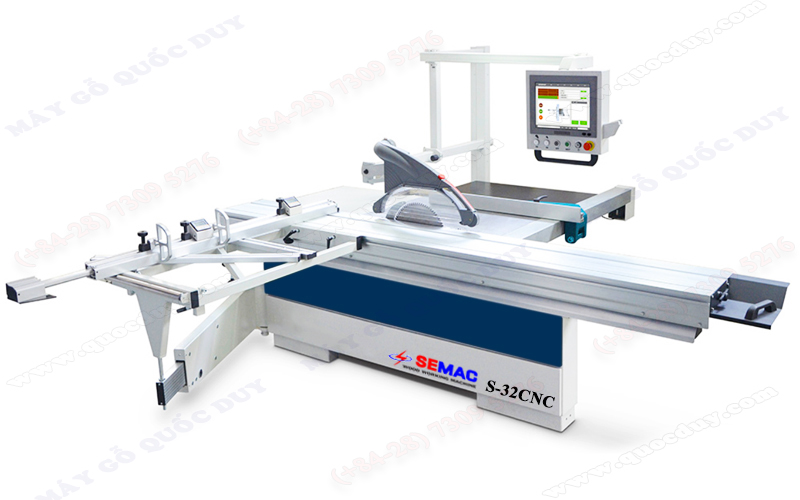

SLIDING TABLE SAW
Built-in CAM software, automatically generate optimized layout plan, improve sheet utilization Servo motor driven material baffle, fast and accurate positioning, reducung labor costs Can be seamlessly connected electronic saws, to achieve electricity to open long, CNC panel saw saw the final rapid scanning plate
- :S-32 CNC
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |
SLIDING TABLE SAW
Model: S-32 CNC
|
Features
|
|
|
* Built-in CAM software, automatically generate optimized layout plan, improve sheet utilization
* Servo motor driven material baffle, fast and accurate positioning, reducung labor costs
* Can be seamlessly connected electronic saws, to achieve electricity to open long, CNC panel saw saw the final rapid scanning plate.
|
|
|
Specifications
|
|
|
The main blade size
|
: 400mm
|
|
The main blade speed
|
: 3000/4000/5000 rpm
|
|
Groove saw blade size
|
: 120mm
|
|
Slot saw blade speed
|
: 8000rpm
|
|
Blade inclination
|
: 0-45°
|
|
Maximum cutting thickness at 90°
|
: 125mm
|
|
Maximum cutting width
|
: 1250mm
|
|
Slide size
|
: 3200 × 408mm
|
|
Maximum cutting stroke
|
: 3200mm
|
|
Vacuum port diameter
|
: 100mm, 80mm
|
|
Main motor output power
|
: 5.5kW S1
|
|
Slot saw motor output power
|
: 0.75kW S1
|
|
Package size
|
|
|
Host
|
: 2300 × 1190 × 910mm
|
|
Slide
|
: 3600 × 505 × 280mm
|
|
Net weight
|
: 810 kgs
|
|
Gross weight
|
: 920 kgs
|
