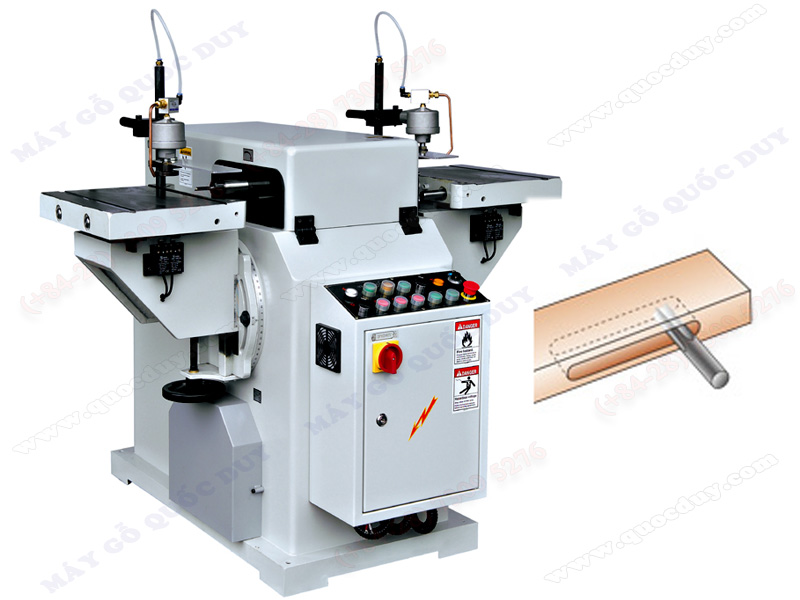

OSCILLATION MORTISER RECTANGULAR TENONER
Oscillation mortiser rectangular tenoner MOM-130 the spindle head is manufactured from aluminum alloy. Equipped with steel bearing bushing to avoid bearing loosening which may affect machining accuracy....
- :MOM-130
- :Taiwan
- :12 month
- :Call
- :
 |  |
OSCILLATION MORTISER RECTANGULAR TENONER
Model: MOM-130
| Specifications | |
|

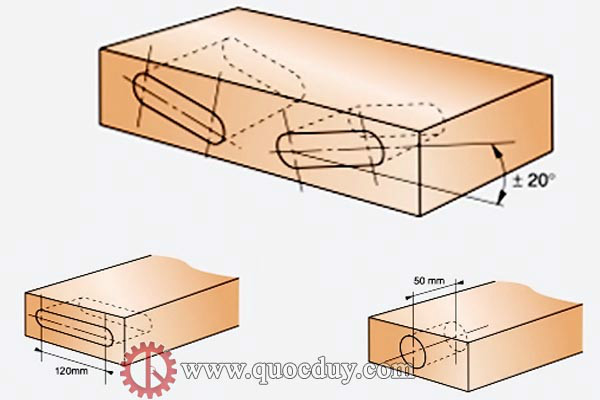

+ Max mortise width
|
: 130 mm
|
|
+ Max mortise deepth
|
: 50 mm
|
|
+ Max clamping thickness
|
: 100 mm
|
|
+Table area
|
: 420 x 310 mm
|
|
+ Table tilts
|
: 0 - 350
|
|
+ Table stroke
|
: 60 mm
|
|
+ Table elevation distance
|
: 75 mm
|
|
+ Spindle speed
|
: 9000 rpm
|
|
+ Cutter oscillation speed
|
: 0 – 340 strokes/min
|
|
+ Controller
|
: PLC
|
|
+ Spindle motor
|
: 2 HP
|
|
+ Cutter oscillation motor
|
: 0.5 HP
|
|
+ Working air pressure
|
: 5 kgs/cm2
|
|
+ Machine dimensions
|
: 1360 x 1000 x 1410 mm
|
|
+ Packing dimensions
|
: 1480 x 1120 x 1540 mm
|
|
+ Net weight
|
: 470 kgs
|
