RUSTIC WOOD ROLLING SHUTTER

RUSTIC WOOD ROLLING SHUTTER
  • :FD-B-1320
  • :Call
  • :

RUSTIC WOOD ROLLING SHUTTER

Model: FD-B-1320

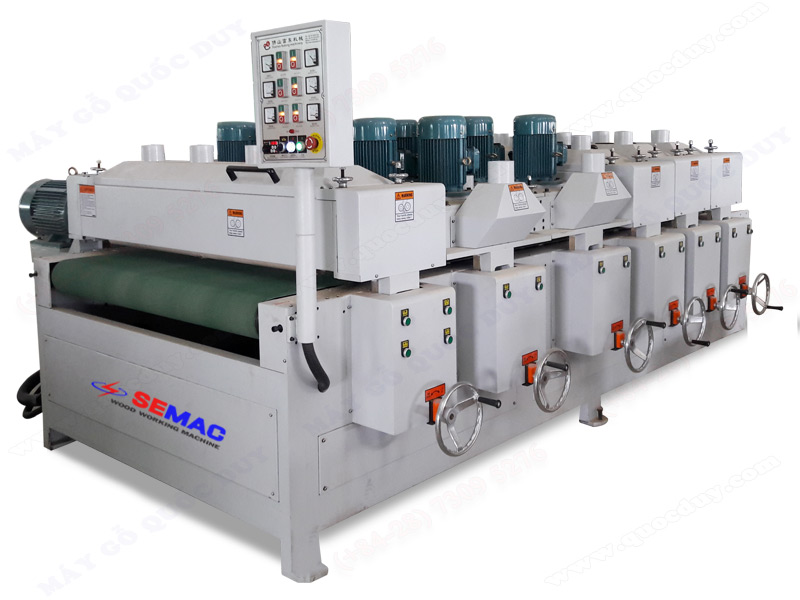

FD-B-1320-may-cao-cuoc
1) wood surface processing: it must be to have grain
2) the board thickness between 3mm-80mm
3) the effective width of 20-1300mm Minimum lenth :300mm
4) conveying speed: 8 m -20 m/min
5) Feeding power :4KW , working Power: 35KW
6) Automatic UP-down also by hands,
7) note height adjustment, not too low, but also avoid bad brush belt.
8) the first head φ0.4 - wire
9) 2nd &3rd vertical groups φ0.35 disc brush
10) 4th head using φ0.3 – wire
11) 5th Nylon polishing wire
12) 6th Nylon polishing wire
13) Application:brush to brush the soft wood grain of solid wood and l
eave the hard wood grains or distress the solid wood and follow th
e natural grains of wood, to make the surface more rustic, country
and weathered, mainly used in processing rustic solid flooring/pa
rquet, classic/antique furniture panel, doors/window frame ,solid
wood veneer etc.
Emergency 1. The 1 panel emergency stop.
Specifications
Working width
  20-1320 mm
Working thickness
2 – 80 mm
Min. Working length
300 m
Speed
5- 20 m/min
Feed motor
 4 Kw
Motor
35 Kw
Machine size
 4100 x 2700 x 1500 mm
Net weight
2500 kg
