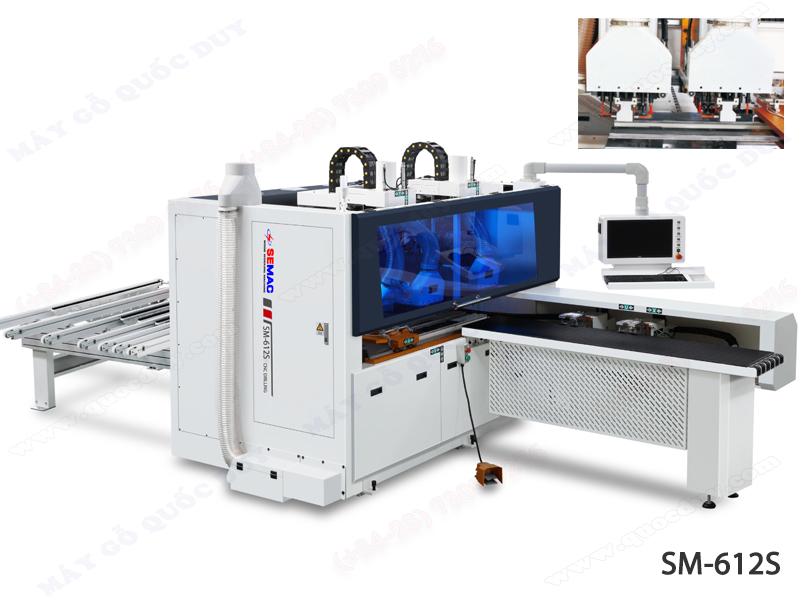

SIX-SIDED DRILLING AND MILLING MACHINING CENTER

Model: SM-612S

Specifications
Processing size range
Min. Width of work-piece	: 50 mm
Max. Width of work-piece	: 1200 mm
Max. Length of work-piece	: 3600 mm
Min. Length of work-piece	: 250 mm
Max. Thickness of work-piece	: 48 mm
Min. Thickness of work-piece	: 10 mm
X axis	: 5000 mm – 130 m/min
Y axis	: 1680 mm -  80 m/min
Z axis	: 90 mm -  30 m/min
U axis	: 5000 mm - 130 m/min
V axis	: 1200 mm - 80 m/min
W axis	: 100mm – 30 m/min
A axis	: 1260mm – 30 m/min
Y2 axis	: 1500 mm -  80 m/min
Z2 axis	:  90 mm -  30 m/min
Drilling unit
Vertical spindles	: 28 ( X axis) + 9 ( Y axis)
Horizontal	: 16
Drilling box motor speed	: 3400 rpm
Drilling motor power	: 2.2 kw*2
Milling unit
Milling motor power	: 3.5 kw x 2
Spindle speed	: 18000 rmp
Other data
Working table height	: 960 mm
Total power	: 25.6 kw
Voltage	: 380V/50Hz
Air pressure	: 0.7-0.8Mpa
Netweight	: 3900kg
Machine	: 5800x2840x2200mm
