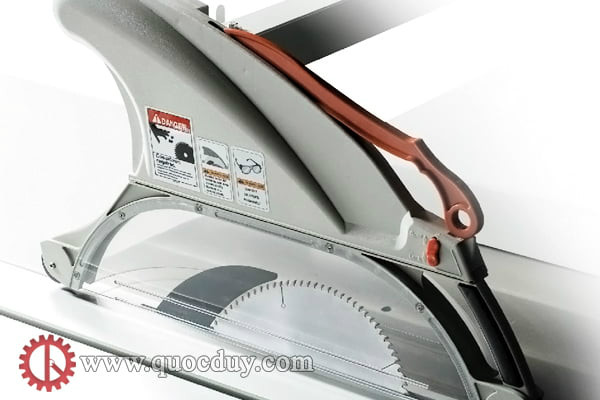

SLIDING TABLE SAW
SLIDING TABLE SAW has strong structure, high precision, speed stable preparations
- :P-32/P-3200T/P-2800TA
- :Taiwan
- :12 month
- :Call
- :
 |  |
SLIDING TABLE SAW
Model: P-32/P-3200T/P-2800TA
| SPECIFICATIONS | |||
|
Model
|
P-32
|
P-3200T
|
P 2800TA
|
|
Sliding table dimension (mm)
|
380x3200
|
3800x2800
|
|
|
Main saw blade (mm)
|
305
|
||
|
Main saw bore(mm)
|
Ø25.4
|
||
|
Scoring saw blade(mm)
|
Ø120
|
||
|
Scoring saw blade bore(mm)
|
Ø 22
|
||
|
Max cutting height with blade at 900 (mm)
|
105
|
100
|
|
|
Max cutting height with blade at 450
|
73
|
70
|
|
|
Main motor power
|
7.5 HP
|
||
|
Main blade speed (rpm)
|
3000/4000/5000
|
5000
|
4000
|
|
Scoring motor power (HP)
|
1
|
||
|
Scoring blade speed(rpm)
|
8000 RPM
|
||
|
Cutting width adjustment
|
MANUAL
|
||
|
Saw table extension(mm)
|
370 mm
|
400 mm
|
|
|
Blade tilting adjustment
|
0- 450
MANUAL
|
0 - 450(display digital)
|
|
|
Main saw height adjustment
|
MANUAL
|
MANUAL
|
|
|
Scoring saw height adjustment
|
MANUAL
|
MANUAL
|
|
|
Scoring saw +/- direction adjustment
|
MANUAL
|
MANUAL
|
|
|
Blade tilting show
|
take the machine
|
display digital
|
|
|
Main blade speed show
|
puly change
|
display digital
|
|
