SPIRAL CUTTERHEAD PLANER SANDER 1M
SPIRAL CUTTERHEAD PLANER SANDER 1M

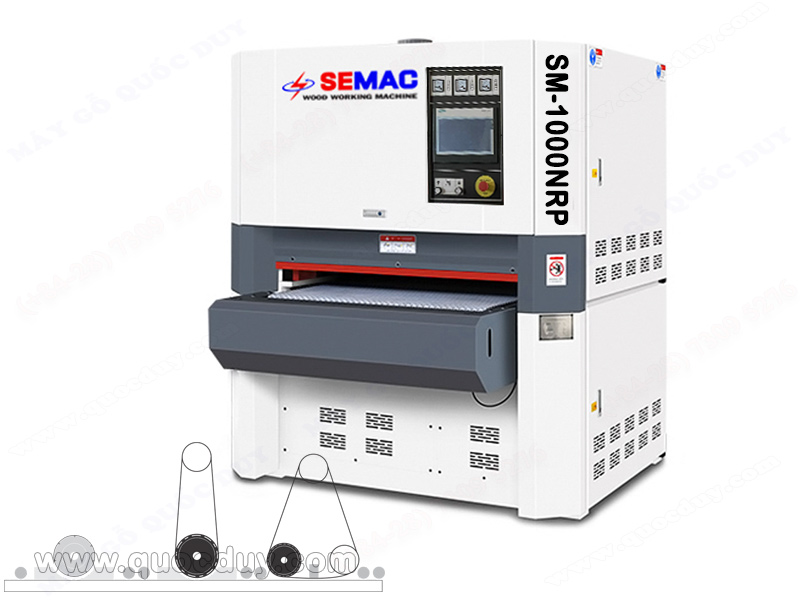

Model: SM-1000NRP
|
Specification
|
|
|
Max. Working width
|
1000 mm
|
|
Min. Working length
|
490 mm
|
|
Working thinkness
|
6 – 160 mm
|
|
Dimension of abrasive belt
|
1030 x 2000 mm
|
|
Feeding speed
|
5 – 30 m/min
|
|
Motor #1
|
18.5 kw
|
|
Motor #2
|
22 kw
|
|
Motor #3
|
11 kw
|
|
Conveyor motor
|
3 kw
|
|
Lift table motor
|
0.37 kw
|
|
Rush roller motor
|
0.37 kw
|
|
Air pressure
|
0.6 Mpa
|
|
Exhaust volume requirement
|
11200 m3/h
|
|
Total power
|
55.24 Kw
|
|
Net weight
|
3500 kg
|
|
Machine size
|
1663 x 2544 x 1980 mm
|
