WIDE BELT PLANING/SANDING MACHINE 1M3
WIDE BELT PLANING/SANDING MACHINE

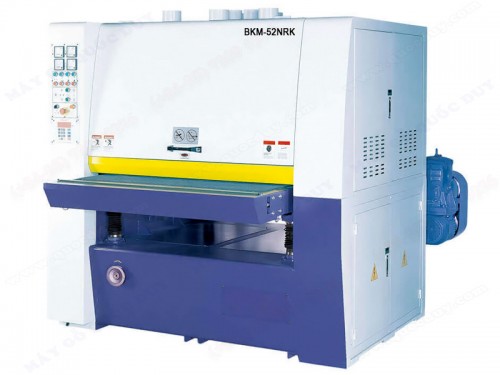

Model: BKM-52NRK
Features |
|
- Computerized table-elevation. - Digital readout for the opening between the conveyor table and contact roller - The contact roller is rubber coated and dynamically balanced. - Photoelectric cell controlled sanding belt tracking. - Body activated emergency stop bar. - Automatic machine stop in the event of air failure or sanding belt breaking. - Quick replace sanding belt device. - The conveyor table is supported by precision ball screws, providing extremely smooth and accurate table elevation. - Precision heavy duty spiral cutterhead, using spiral slots & fitted with throw-away, four-edge tungsten carbide knife bits. Can be easily changed in the front of machine without removing the whole cutterhead from machine. |
|
Specifications |
|
Model
|
BKM-52NRK
|
Max. working width
|
1270 mm
|
Max. working thickness
|
127 mm
|
Main motor (standard)
|
25,30,20 HP
|
Main motor (optional)
|
25, 40, 30 HP
|
Feed motor
|
5HP
|
Table hoist motor
|
½HP
|
Feed speed range
|
4-18±5% m/min
|
Sanding belt size
|
1295 x 1905 mm
|
Spiral cutter head dia.
|
180 mm
|
Working pressure
|
6 kg/cm2
|
Net weight
|
4000 kgs
|
Gross weight
|
4400 kgs
|
Machine size
|
2790 x 2210 x 2060 mm
|
Packing size
|
2820 x 2270 x 2270 mm
|
