STANDARD TOP/ BOTTOM SANDING SYSTEMS 0.7M
- :SM 700RRPTU
- :SEMAC - Quoc Duy
- :12 Months
- :Call
- :
 |  |

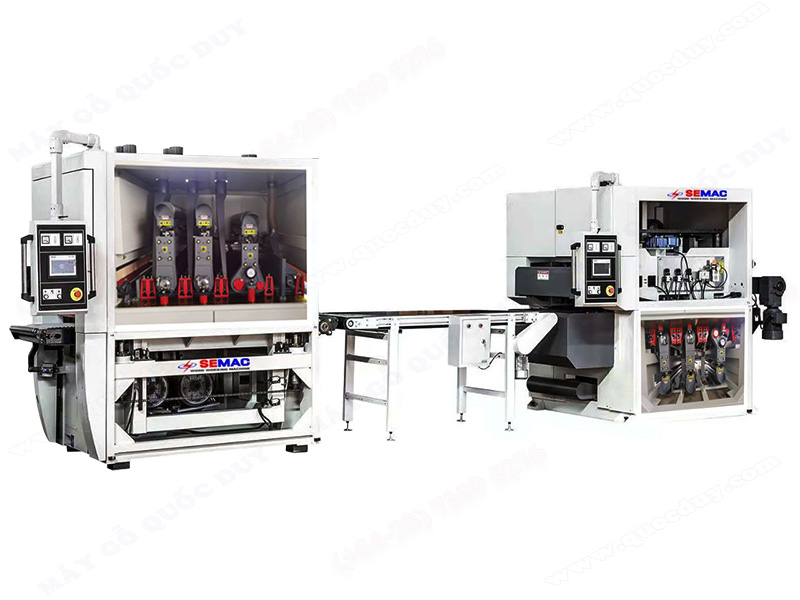

STANDARD TOP/ BOTTOM SANDING SYSTEMS 0.7M
Model : SM 700RRPTU
|
Specification
|
|
|
A. TOP SANDING MACHINE 0.7 M
|
|
|
Maximum working width
|
: 700mm
|
|
Working thickness
|
: 2-160mm
|
|
Minximum working length
|
: 490mm
|
|
Workpiece speed
|
: 5-30m/min
|
|
Rough tape size
|
: 730 x 1900mm
|
|
Capacity on shaft 1
|
: 20 HP
|
|
Capacity on shaft 2
|
: 20 HP
|
|
Capacity on shaft 3
|
: 15HP
|
|
Machine size
|
: 1415 x 2697 x 2438mm
|
|
Weight
|
: 3700kg
|
|
B. BOTTOM SANDING MACHINE 0.7M
|
|
|
Maximum working width
|
: 700mm
|
|
Working thickness
|
: 2-160mm
|
|
Minximum working length
|
: 490mm
|
|
Workpiece speed
|
: 5-30m/min
|
|
Rough tape size
|
: 730 x 1900mm
|
|
Capacity on shaft 1
|
: 20 HP
|
|
Capacity on shaft 2
|
: 20 HP
|
|
Capacity on shaft 3
|
: 15HP
|
|
Machine size
|
: 1574 x 3018 x 2360mm
|
|
Weight
|
: 4300kg
|
|
C. CONVEYOR
|
|
|
Maximum working width
|
: 730mm
|
|
Workpiece speed
|
: 5-30m/min
|
|
Motor
|
: 1 HP
|
|
Conveyor size
|
: 800 x 2000 x 850mm
|
|
Weight
|
: 300kg
|
