WIDE BELT SANDERS 2 CAPACITY
- :PR-25D\PR-25A\PR-25DA
- :Taiwan
- :12 months
- :Call
- :
 |  |
WIDE BELT SANDERS 2 CAPACITY

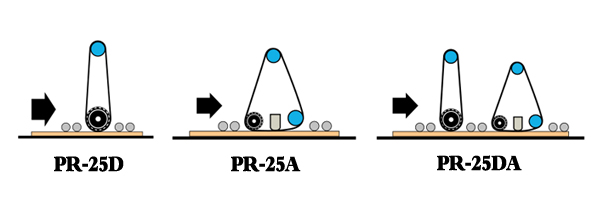

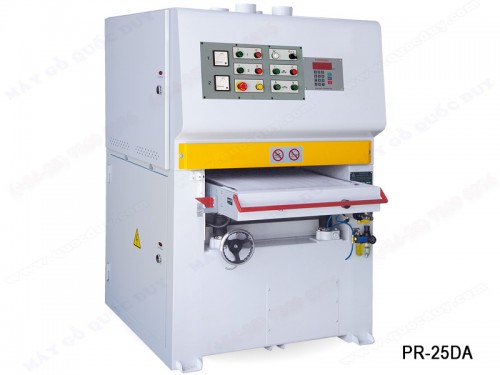

Model: PR-25D\PR-25A\PR-25DA
|
Features
|
|||
|
PANEL CLEANING BRUSH ROLLER
Built at outfeed end of the machine, this panel cleaning brush roller clean powder on the sanded panel. FEED CONTROLLED BY FREQUENCY INVERTER
Used for adjusting the sanding belt speed. (Use together with hollow shaft speed reducer) VARIABLE SPEED UNIT
The conveyor belt speed is controlled by a variable speed unit. Feed speed can be varied as desired to suit all types of workpiece material,assuring superior sanding quality. SANDING BELT QUICK CHANGE DEVICE
The sanding belt is changed quickly for time saving and convenience CONVEYOR BELT TRACKING CONTROL
The conveyor belt tracking is pneumatically controlled to effectively prevent out-of-track |
|||
| Specifications | |||
 |
|||
|
Working width
|
610mm
|
610mm
|
610mm
|
|
Working height
|
100mm
|
100mm
|
125mm
|
|
Main motor standard
|
10HP
|
10HP
|
15,10HP
|
|
Feed motor
|
1HP
|
1HP
|
2HP
|
|
Table hoist motor
|
1/2HP
|
1/2HP
|
1/2HP
|
|
Feed speeds (Variable)
|
4-16 M/min
|
4-16 M/min
|
4-16 M/min
|
|
Sanding belt size
|
610x 1219 mm
|
610x 1219 mm
|
635x1524 mm
|
|
Compressed air required
|
4 kg/cm²
|
4 kg/cm²
|
5 kg/cm²
|
|
Exhaust volume requirement
|
2575 M³/Hr
|
2575 M³/Hr
|
3090 M³/Hr
|
|
Net weight
|
660kg
|
660kg
|
1350kg
|
|
Gross weight
|
720kg
|
720kg
|
1600kg
|
|
Dimensions
|
1345x1270x1600 mm
|
1345x1270x1600 mm
|
1880x1372x1778
|
|
Packing siz
|
1422x1372x1778 mm
|
1422x1372x1778 mm
|
1981x1448x1930 mm
|
