WIDE BELT SANDERS HEAVY DUTY

  • wide belt sanders heavy duty Sanding belt quick change device, Conveyor belt tracking control...

  • :PR-1300DA\PR-1300DDA
  • :Taiwan
  • :12 months
  • :Call
  • :

WIDE BELT SANDERS HEAVY DUTY

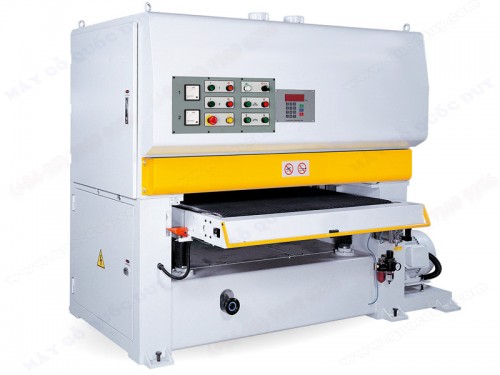

Model: PR-1300DA\PR-1300DDA

PR-1300DA-may-cha-nham-thung-1-3m-tai-nang
Features
- Rugged Construction:The main frame is fabricated of heavy duty-steel plate and ribbed to minimize vibration and deflection.
- Convenient Controls:  All operating controllers are centralized in a convenient control panel. Large, clearly identified and color coded push buttons simplify set up and start-up.
- Load Meter: Maintains constant check during operation to indicate percentage of full load on motor. Conveniently mounted for immediate readout.
- Emergency Stop Button: Large mushroom push button on control panel provides immediate stop control of all operating systems.
- Heavy-Duty Rubber Covered Contact Drum: Carefully designed and balanced to insure precise, chatter-free sanding. Covered with proper durometer rubber for each application.
- Hold-down plate: The hold-down plate is hard chrome treated for maximum wear resistance
- Automatic elevation of conveyor table(Micro-computer controlled
with digital readout):
It accurately display the position of the conveyor table
Specifications:
may-cha-nham-pr1300

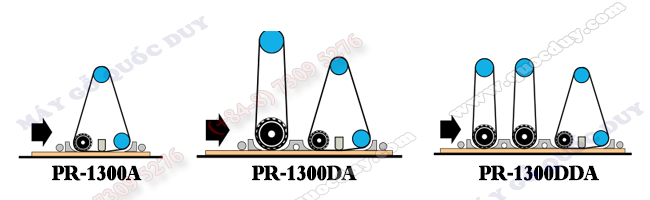

Model
PR-1300A
PR-1300DA
PR-1300DDA
Working width
1300mm
1300mm
1300mm
Working height
125mm
125mm
125mm
Main motor standard
25HP
30,25HP
40,30,25HP
Feed motor
3HP
5HP
7 1/2HP
Table hoist motor
1/2HP
1HP
1HP
Feed speeds (Variable)
6-26 M/min
6-26 M/min
6-26 M/min
Sanding belt size
52" x 84"
52" x 84"
52" x 84"
Compressed air required
5 kg/cm²
6 kg/cm²
6 kg/cm²
Exhaust volume requirement
3500 M³/Hr
6860 M³/Hr
9870 M³/Hr
Net weight
2500kg
4700kg
5050kg
Gross weight
2800kg
5200kg
5850kg
Dimensions
2718x1778x2108 mm
2718x2235x2032 mm
2997x2235x2032 mm
Packing size
2768x1880x2260 mm
2769x2261x2261  mm
2768x2260x2260 mm
