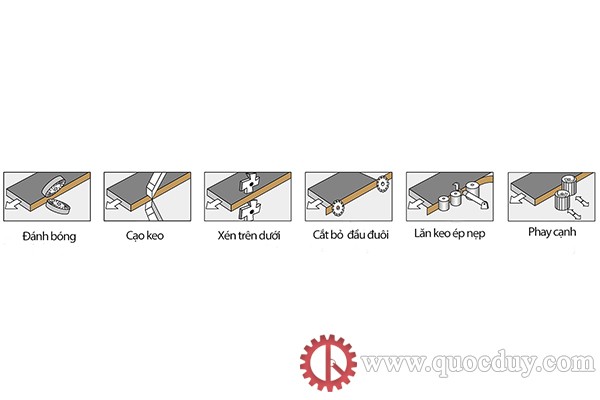

Functional features
- Adopt to the linear sealing of PVC,wood plank and veneer etc. - Using imported quality engines and electric components. - Serialized products,a wide range of selection by customers. - High precision and efficiency.
Specifications
Motor power	: 13.6 kw
Feed speed	: 12~20m /min
Panel thickness	: 10~60 mm
Edge banding tape thickness	: 0.4~3 mm
Panel width	: ≥40 mm
Working air pressure	: 0.8 Mpa
Machine size	: 5100 x 980 x 1600 mm
Net Weight	: 1650 kg

APPLIES THE FULL-AUTOMATIC EDGE BANDING MACHINE

APPLIES THE FULL-AUTOMATIC EDGE BANDING MACHINE

Model: SM 360M
