Machine functions

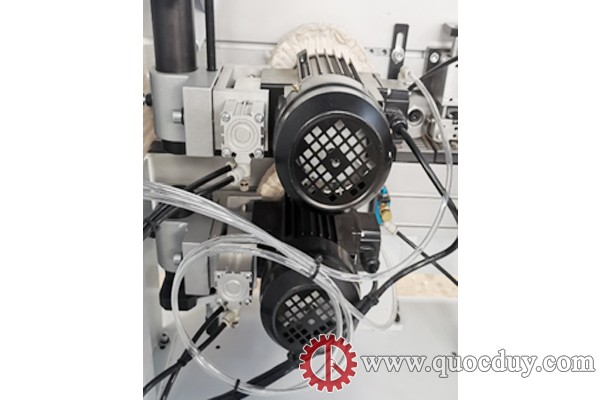

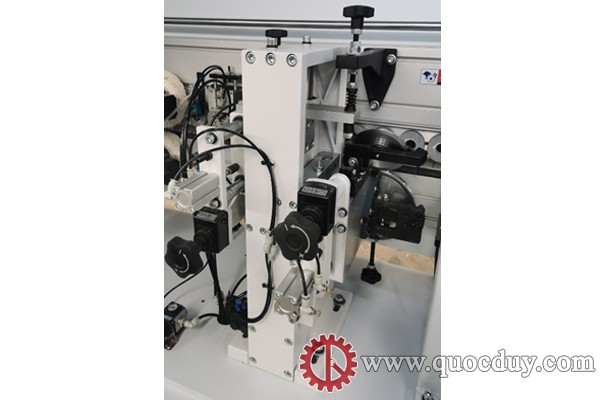

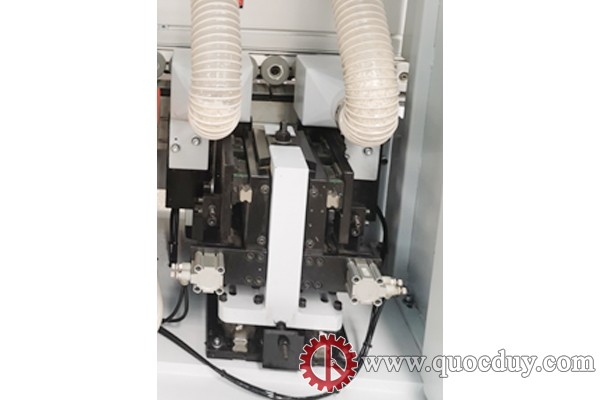

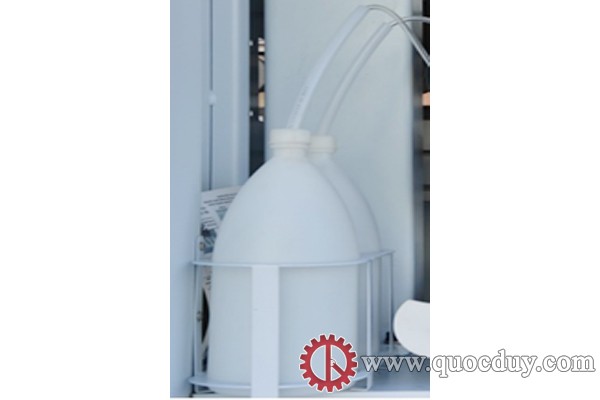

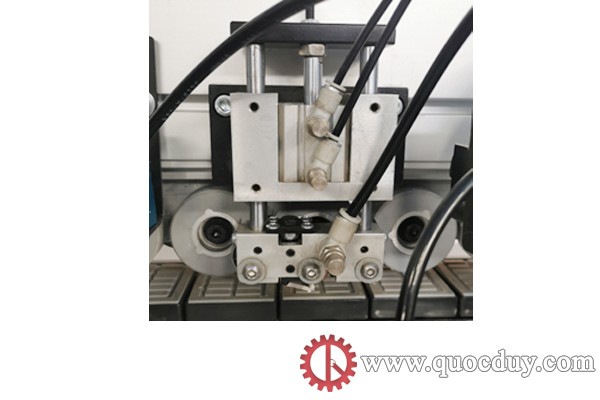

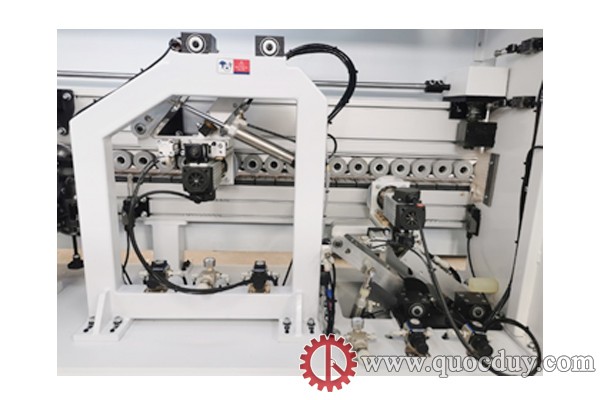

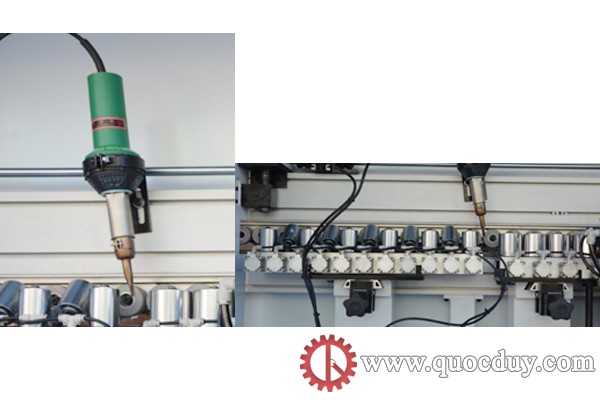

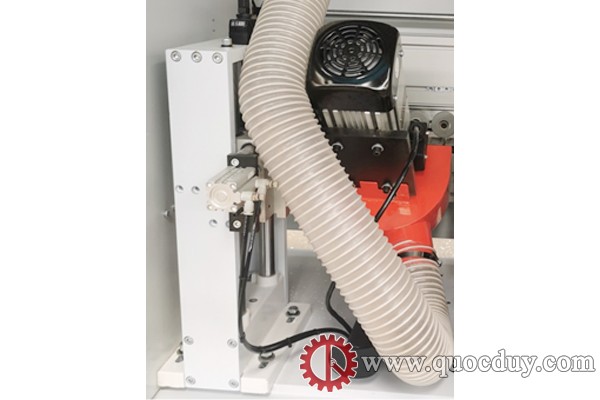

1. Pre-milling at straight surface 2. Pre-milling at inclination surface 3. Panel pre-heating 4. Grooving on tape 5. Gluing at inclination surface 1 6. Gluing ports at straight surface 2 7. Gluing ports at straight surface 3 8. Edge banding tape pre-heating 9. Tape pressuring 10. End cutting 11. Rough trimming 12. Fine trimming 13. Corner rounding 14. Scraping 15. Cleaning 16. Flat scraping 17. Buffing
Specifications
Panel thickness	:10-60 mm
Edge banding tape thickness	: 0.4-3 mm
Panel width	: ≥ 80 mm
Working speed	: 12-20 m/phút
Pre-milling at straight surface	:1.8 kw x 2
Pre-milling at inclination surface	:4 kw
Gluing motor power	:0.75 kw x 2
Heating power	:1.5 kw
Ending trimming motor power	:0.37 kw x 2
Trimming on the bottom rough	:0.75 kw x 2
Trimming above the sub-chimpanzee	: 0.75 kw x 2
corner trimming	:0.37 kw x 2
pre-miling	:0.37 kw x 2
Belt motor power	:3.7 kw
Working air pressure	:0.7 Mpa
Weight	:3000 kg
Machine size	:9800 x 900 x 1600 mm

AUTO INCLINATION EDGE BANDING MACHINE

AUTO INCLINATION EDGE BANDING MACHINE

Model: PRO ARC 3
