Specification
Max edge height	60 mm
Panel thickness	10-60 mm
Working speed	12-20 m/min
Edge banding tape thickness	0.4-3 mm
Gluing motor power	0.75 kw x 2
Heating power	1.5 kw x 2
Ending trimming motor power	0.37 kw x 2
Fine trimming motor power	0.75kw x 4

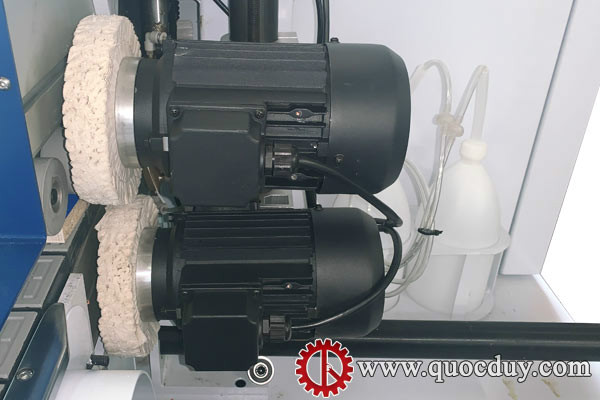

Buffing motor power	0.37 kw x 2
Belt motor power	2.2 kw
Panel width	80 mm
Working air pressure	0.6 - 0.8 Mpa
Machine size	7700 x 1000 x 1700 mm
Weight	1900 kg

AUTOMATIC EDGE BANDING MACHINE

AUTOMATIC EDGE BANDING MACHINE

Model: MICHAEL 4
