Feature

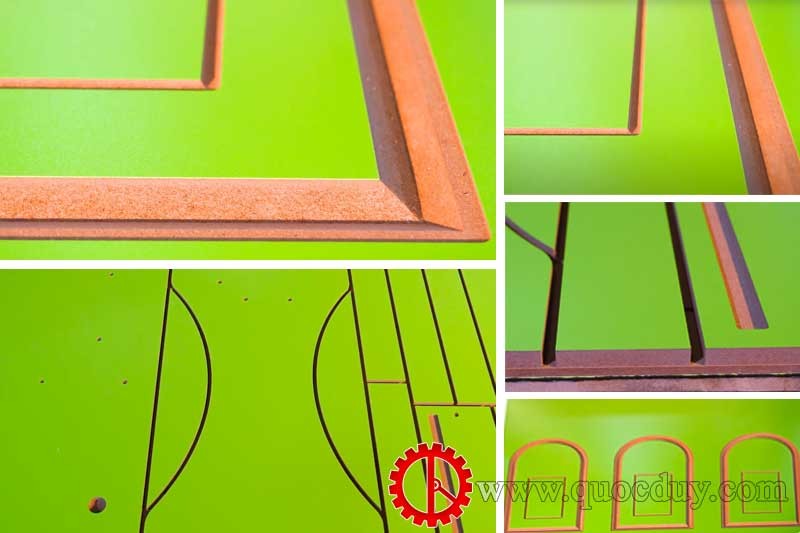

The cnc nesting machine combines the billet folding unit to push the workpiece out The machine includes 1 router head - 1 drill assembly that performs the functions of cutting, drilling, milling, grooving, pano... Solidly designed machine frame, 7.5kw . vacuum pump Control system : System BAOYUAN - Taiwan Boring unit : CHANGCHUAN 9 axis, L type DRIVER XINJIE Slider: Taiwan CD Delixi Contactor Schneider
Specifications
X – axis travel	: 1300 mm
Y – axis travel	: 2500 mm
Z – axis travel	: 180 mm
Spindle motor	: 9 kw
Drill motor	: 1.7 kw
Spindle speed	: 24000 rpm
X – axis speed travel	: 20 m/min
Y – axis speed travel	: 20 m/min
Z – axis speed travel	: 20 m/min
Voltage	: 380v/50hz
Servo motor	: Xinjie 1.5 kw
Vacuum pump motor	: 7.5 kw
Total power	: 20.5 kw
Netweight	: 3000 kgs
Origin	: Semac – Quoc Duy
