Specifications
Processing size range
Min. Width of work-piece	: 50 mm
Max. Width of work-piece	: 1200 mm
Max. Length of work-piece	: 2700 mm
Min. Length of work-piece	: 200 mm
Max. Thickness of work-piece	: 48 mm
Min. Thickness of work-piece	: 12 mm
Working Stoke & Max. Position speed:
X axis	: 5000 mm – 130 m/min
Y axis	: 1680 mm - 80 m/min
Z axis	: 90 mm - 30 m/min
U axis	: 5000 mm - 130 m/min
V axis	: 1200 mm - 80 m/min
W axis	: 100mm – 30 m/min
A axis	: 1260mm – 30 m/min
Drilling unit
Vertical spindles	: 12 ( X axis) + 9 ( Y axis)
Horizontal	: 8
Drilling box motor speed	: 3400 rpm
Drilling motor power	: 2.2 kw
Milling unit
Milling motor power	: 3.5 kw x 2
Spindle speed	: 18000 rmp
Other data
Working table height	: 960 mm
Total power	: 19.2 kw
Voltage	: 380V/50Hz
Air pressure	: 0.7-0.8Mpa
Netweight	: 3500kg
Machine	: 5800x2840x2200mm

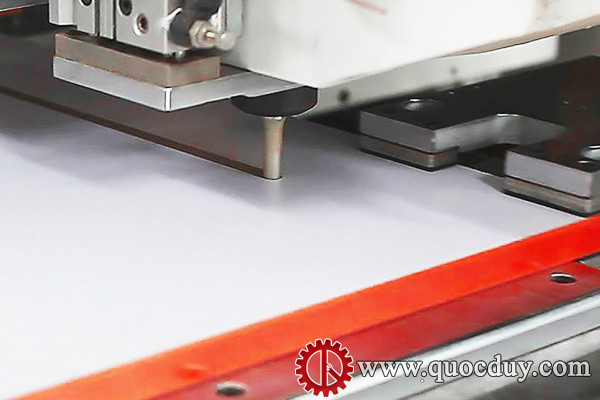

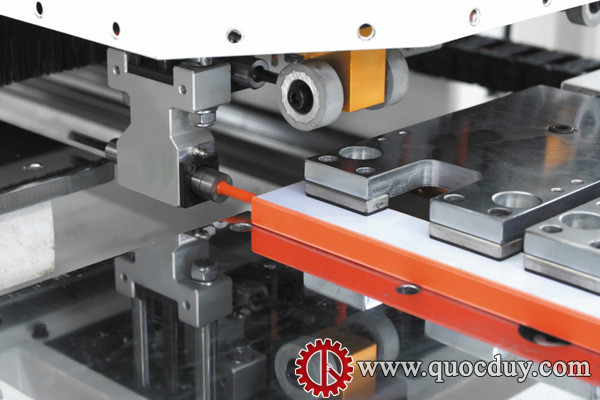

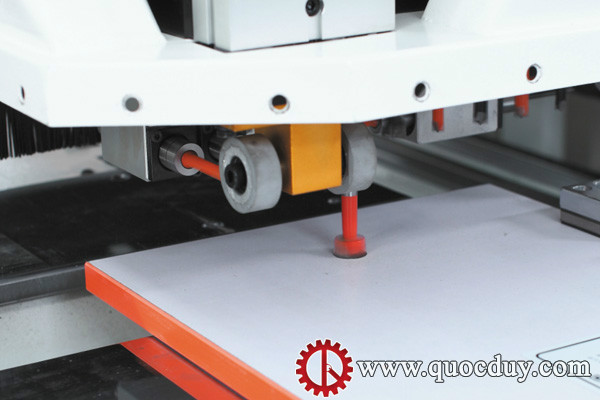

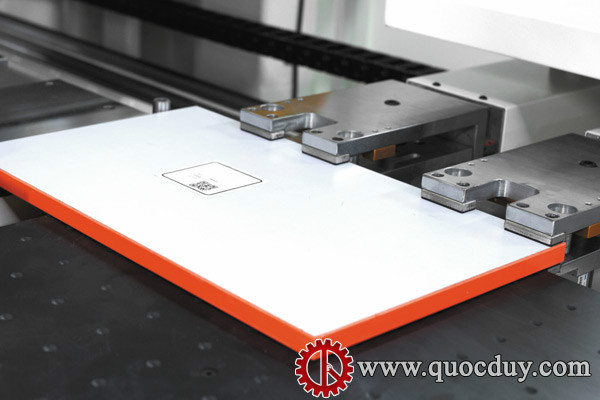

SIX CNC BORING MACHINE

SIX CNC BORING MACHINE

Model: SM-612H
