Specifications
Working area	: 1300x2500x200 mm
The worktable	: Vacuum worktable
Shaft drive mode	: XY axis rack drive, Z axis screw drive
Shaft power mode	: Z axis with brake function
Max. Travel speed	: 50 m/min
Max. Working speed	: 25 m/min
System resolution	: ±0.001mm
Repeat positioning accuracy	: ±0.03 mm
Voltage	: AC 380/3PH/50 Hz:

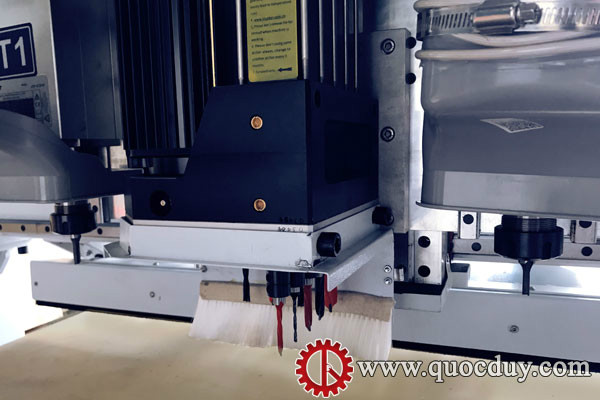

Milling Spindle power	: 6 KW x 2
Milling speed	: 0-18000 vòng/phút

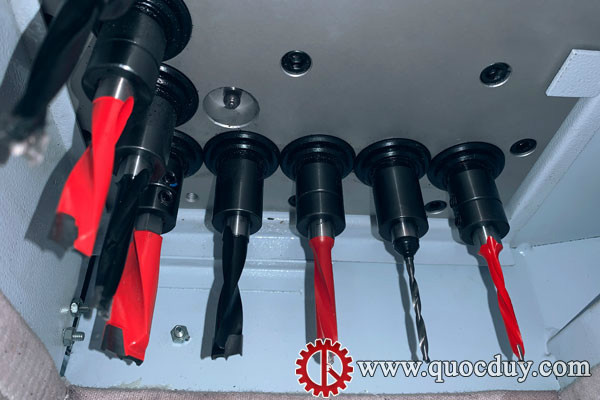

Drilling Spindle power	: 2.2 KW x1
Drilling Spindle speed	: 2800/3400 vòng/phút
Run command	: G code
Vacuum pump	: 7.5 kw
Net weight	: 3200 kgs

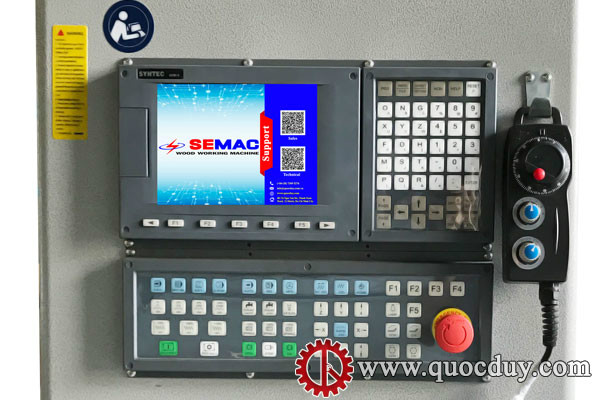

Control system	: SYNTEC
Servo system	: Panasnic servor motor (Z axis with brake)
Drilling	: Taiwan
Rail	: HIWIN25
Rack	: Germany HERION
Transmission	: X, Y Axis: Germany HERION. Z-axis Taiwan ball screw
Video

CNC ROUTER MACHINE

CNC ROUTER MACHINE

Model: SM-1325A2
