X axis stroke	: 1300mm
Y axis stroke	: 2500mm
Z axis stroke	: 220mm
Max speed	: 0-60m/min
Accuracy	: ±0.05mm
Code	: G code
Voltage	: 380V/50Hz
Spindle capacity	: 9 kw
Drilling shaft capacity	: 2.2 kw
Spindle speed	: 6000-24000 rpm
Machine size	: 3500 x 2550 x 2380 mm
Machine body	: Thick wall housing pipe welding plus annealing stress relief treatment

Max. load	: 2 tons
Max. lifting height	: 1.2M
Hydraulic pump motor	: 2HP
Machine size	: 2200 × 1000 × 500 mm
Net weight	: 800 kgs

This equipment body structure is aluminum, charming and beautifull
It is suitable for feeding every kind of flat workpiece
Inverter speed control
Width range	: 1300mm
Length range	: 2500mm
Loading	: 50 Kg

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOAD

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOAD

Model: SM 1325R1B-AL

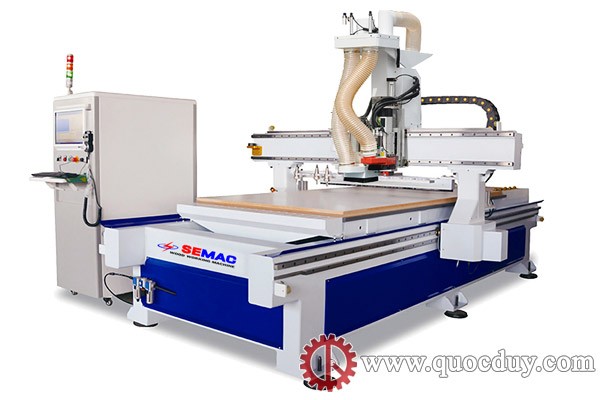

CNC ROUTER MACHINE WITH BORING UNIT – Model: SM-1325-R1B

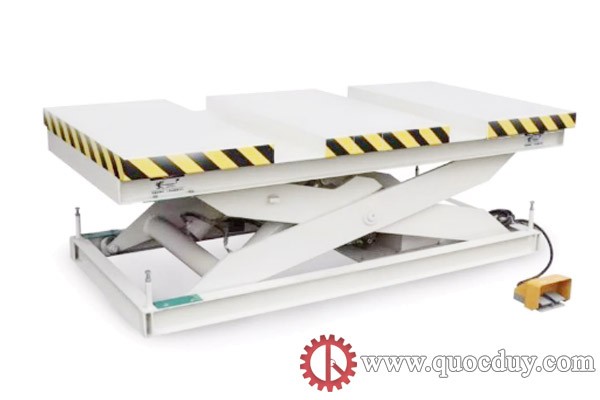

A.HYDRAULIC LIFTING TABLE

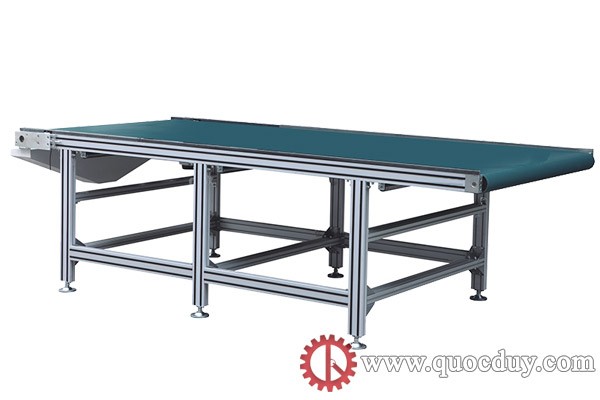

B. BELT CONVEYORS
