Specifications
Processing length	2300 mm
Max. working thickness	90 mm
Max. working width	150 mm
Spindle speed	2800 rpm
Vertical and horizontal drilling motor	1.5 kw

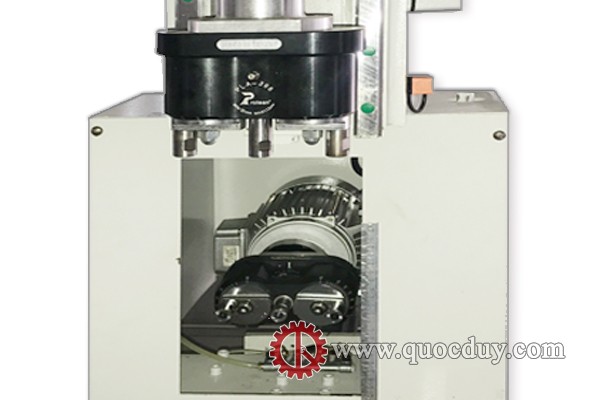

Equipped with Puden drill head	3 holes (adjustable)
X, Y, Z moving linear slides are adopted	25 mm
X-axis servo power	1 kw
Y-axis servo power	0.75 kw
Z-axis servo power	0.75 kw
Machine size	3470 x 1500 x 1700 mm

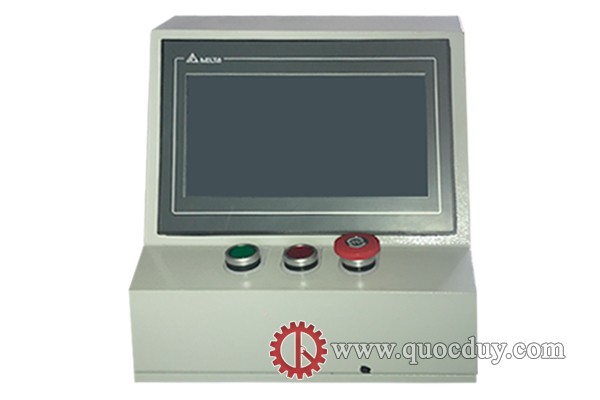

Servo, PLC	Delta
