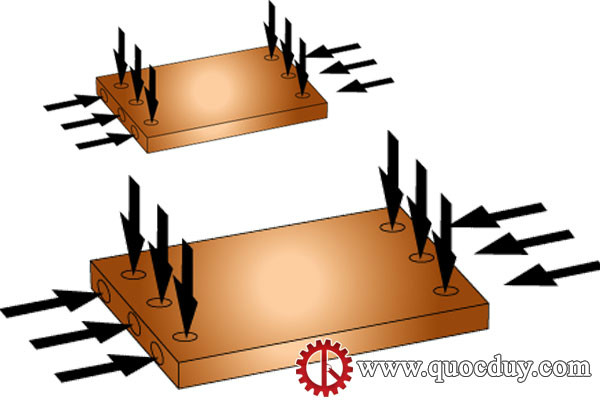

The machine base is manufactured from high quality cast iron. (FC 25-30) This machine can drill both ends and top-side simultaneously. 2 boring units perform both vertical &horizontal borings. . Boring head can accept a drill chuck with single drill bit. Multiple boring heads also can be fitted (optional). Both boring units can be swiveled to 360? ( for angular drilling). This machine is pneumatically operated.
Specification
Spindle motor ( horizontal)	2 hp x 2
Spindle motor ( vertical)	1 hp x 2
Spindle speed	3000 rpm
Head in line max. distance between drills	2600 mm
Head in line min. distance between drills	280 mm
Head at parallel max. distance between drills	2100 mm
Head at parallel min. distance between drills	300mm
Max. borning depth	80 mm
Vertical spindle travel	80 mm
Vertical boring troke travel	60 mm
Horizontal spindle travel	100 mm
Clamp cylinder	2 pcs
Max spindle to table distance	60 mm
Air presure	5.6 kg/cm²
Machine size	3100 x 750 x 1600 mm
Packing size	3200 x 830 x 1780 mm
Net weight	800 kg
Gross weight	1050 kg
Video

DOUBLE END BORING MACHINE VERTICAL - HORIZONTAL

DOUBLE END BORING MACHINE VERTICAL - HORIZONTAL

Model: SD-2T2
