Application
- The STANDARD series are designed for edging either straight or profiled (Softforming) panel with hot melt glue by through feed - system which consists of top pressure rollers and bottom feed chain. - The edging material can be of PVC, melamine or veneer in strip or coil. - Solid lippings with a maximum thickness of 25mm are on request. - These universal and versatile machines are ideal and STANDARD production equipment for those of small and large plants which require every kind of application.
Features
- Heavy and rigid constructure to ensure necessary accuracy and stability. - To guarantee straight-line feed of the panel, a double row of rubber toothed rollers is off-centered onto top pressure beam and the bottom feed track with rubber calibrated pads is running on cylindrical guide. - The top pressure beam is supported with two reinforced columns and equipped with visible linkages for thickness adjustment. - The feed of edging material, in strip/coil, is automatic and synchronously with panel feed. - The electric and paneumatic system is incorporated in the built-in control cabinets.
Specifications
Panel length	: ≥105 mm
Panel width	: ≥100 mm
Panel thickness	:10~60 mm
Edging thickness	:0.4~25 mm
Feed speed	:10~20m/ min
Rated power	:5.6 kw
Net weight	:3100 kgs
Gross weight	:3550 kgs
Machine size	:7450 x 850 x 1560 mm
Packing size	:7550 x 990 x 1910 mm

EDGE BANDING MACHINE STANDARD SERIES

EDGE BANDING MACHINE STANDARD SERIES

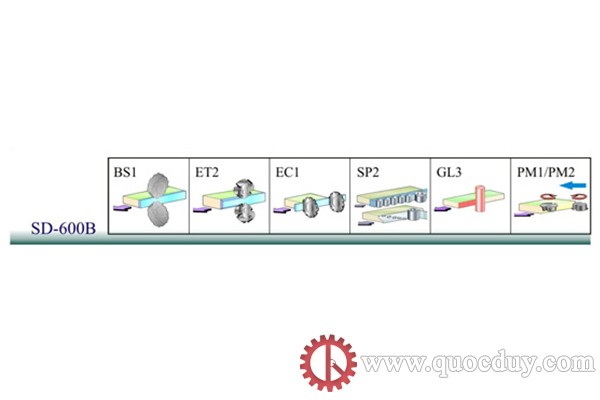

Model: SD 600B
