Features

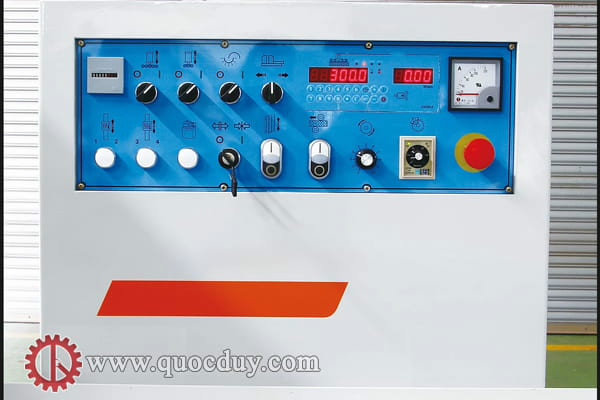

Convenient control panel The centralized control panel provides mazimum operation convenience. Major control functions...

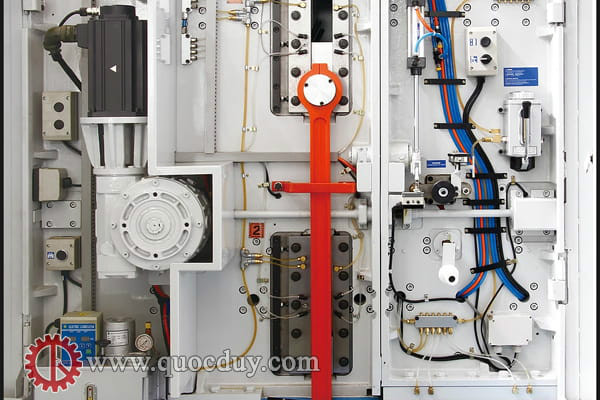

Upper feed roller adopts chain drive with chain allowance automatic compensation system attached.

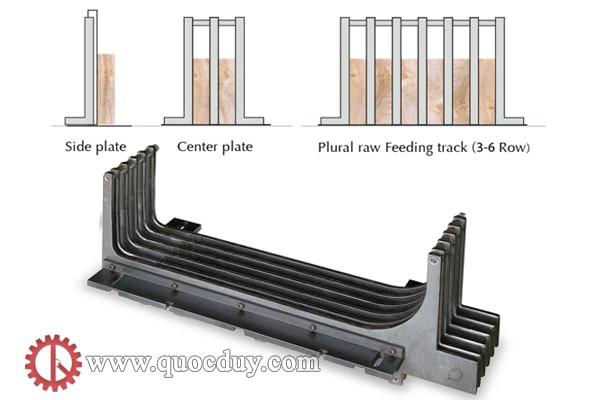

Feed Fences Can Be Changed to Suit Various Wood Materials
Specifications
Motor	: 20 HP+1/4HP + 5kw(kind servo) + 2 Hp
Maximum working thickness	: 200 mm
Work smallest thickness	: 60 mm
Maximum working width	: 150 mm
Minimal working length	: 150 mm
Spindle underside	: 7 pieces forward & 5 pieces behind
Spindle on the front	: 7 pieces & 1 xilanh control by sensor
Spindle on the following	: 5 pieces & 1 xilanh control by sensor
Feed speed	: 0.5 -2 m/min
Speed saw blade	: 480rpm ,itinerary 210mm
specification saw blade	: 500x40x0.8 m
Sawblade width	: 1.2 mm
Saw kerf	: 1.1 – 1.4 mm
Min prescision thickness	: 1.5 mm
Distance between 2 saw	: 1.2 – 1.6 mm
Net weight	: 3100 x 1000 x 1900mm
Gross weight	: 3700 kg
Video

FRAME SAW

FRAME SAW

Model: FR-200
