Features

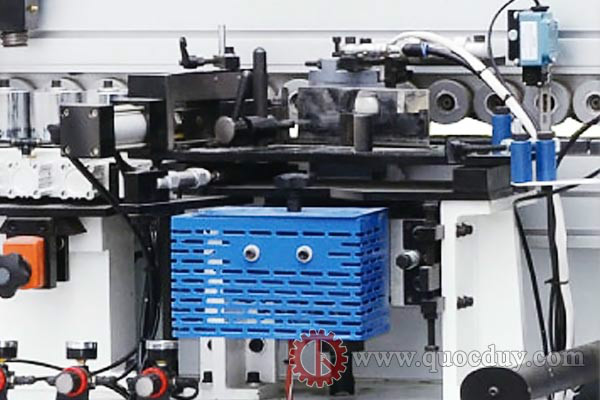

- End - trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly - Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and the top and bottom side of the edge smooth even
- The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination

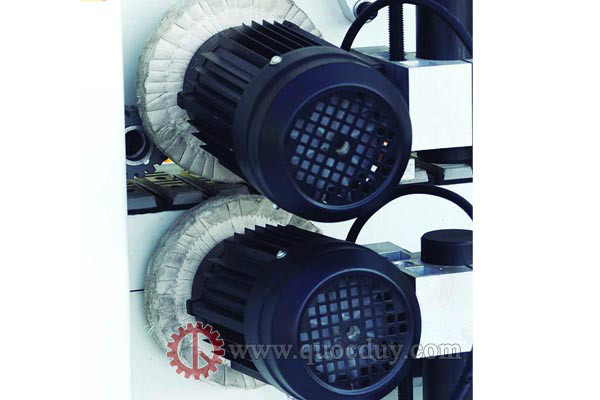

	- The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface
Specifications
Motor power	9.2kw
Feed speed	12～20m/min
Panel thickness	10～60mm
Edge banding tape thickness	0.4～3mm
Panel width	≥40mm
Working air pressure	0.8MPa
Net weight	1900kgs
Machine size	4150×1100×1600mm
Video

Fully automatic edge banding machine

FULLY AUTOMATIC EDGE BANDING MACHINE

Model: SM-360
