Feature

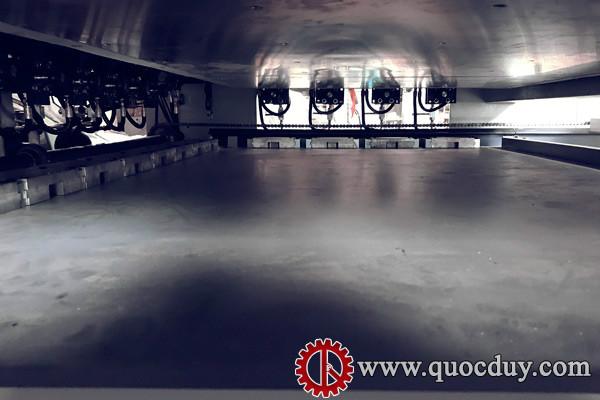

1. Multi-purpose Joining Machine 2. Build-in dual slide table for loading and unloading, buy one machine instead of buying two. 3. Minimum floor space for setup 4. Upper plate mounted with four hydraulic cylinders to generate sufficient pressure so that the surface flatness of panel join within 0.2mm 5. Easy handling - Dual slide table can be lifted up to 55 degree in accordance with ergonomic design. 6. Saving effort and time for loading and re-loading
Specification
Mains voltage	: 3 Ø 200 – 600 V ( 50- 60 Hz)
Max. height pressed	: 45 mm
Input power	: 50 KVA
Workbench size	: 10~50x1220x2500 mm
Hydraulic system	: 7.5HP
Machine size	: 4000 x 3700x 2250 mm
Net weight	: 10000 kgs
Video

HIGH FREQUENCY WOODEN BOARD JOINING AND FRAME JOINING MACHINE

HIGH FREQUENCY WOODEN BOARD JOINING AND FRAME JOINING MACHINE

Model: SM84H35A2
