Features

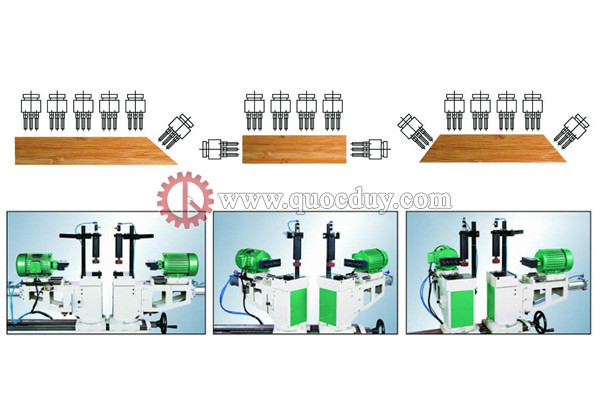

- Constructed with 2 to 6 boring heads offering various borings on both ends and the side. - Each boring unit can be swiveled for angular borings.
Specifications
Spindle motor	2 HP x 6
Spindle speed	50Hz-3000rpm
Head in line max,distance between drills	3000mm
Head in line min,distance between drills	280mm
Head at parallel max,distance between drills	2500mm
Head at parallel min,distance between drills	300mm
Max. boring depth	80mm
Stroke travel	100mm
Clamp cylinder	6pcs
Max. spindle to table distance	60mm
Air pressure	5.5kg/cm²
Machine size	3500 x 1000 x 960 mm
Packing size	3300 x 1240 x 1480 mm
Net weight	1200kg
Gross weight	1480kg

MULTIPLE SPINDLES BORING MACHINE

MULTIPLE SPINDLES BORING MACHINE

Model : SD-6T
