Specifications
Working width	: 1300 mm
Working thickness	: 5 – 100 mm
Feeding speed	: 0 – 18 m/minute

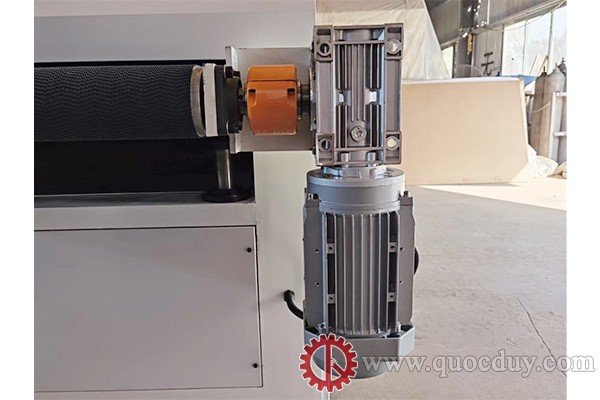

Conveyor motor	: 3 kw
Roller Size	: Ø 130 x 1320 mm
Shaft steel wire 1
Shaft size	: Ø 200 x 1320 mm
Steel wire diameter	: 0.5 mm
Motor	: 7.5 kw – 6
Shaft steel wire 2
Shaft size	: Ø 200 x 1320 mm
Steel wire diameter	: 0.3 mm
Motor	: 7.5 kw - 6
Shaft steel wire 3
Shaft size	: Ø 200 x 1320 mm
Steel wire diameter	: 0.3 mm
Motor	: 7.5 kw - 6
Polishing shaft
Shaft size	: φ 200 x 1320 mm
Diameter	: 1 mm
Motor	: 7.5 kw - 6
Total power	: 34 kw
Machine size	: 2350 x 1880 x 1750 mm3

WOOD GRAIN DRAWING MACHINE

WOOD GRAIN DRAWING MACHINE

Model: SMTL 1320 4

WOOD GRAIN DRAWING MACHINE 1300M

WOOD GRAIN DRAWING MACHINE 1300 MM

EMBOSSING MACHINE WOOD GRAIN

DOUBLE SIDE EMBOSSING MACHINE WOOD GRAIN

WOOD GRAIN DRAWING MACHINE 1M3

DOUBLE SIDE EMBOSSING MACHINE

EMBOSSING MACHINE

RUSTIC WOOD ROLLING SHUTTER MACHINE
