EDGE BANDING MACHINE
Jade 300 AN is the range of automatic single-sided edgebanding machine for small and medium business, offering different versions according to customer needs. Flexibility, reliability and easy working change for different types of edges and panels are guaranteed by the NC device.
- :JADE 340
- :Italy
- :12 months
- :Call
- :
 |  |

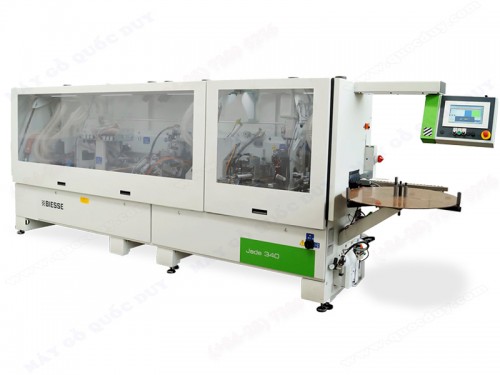

EDGE BANDING MACHINE
Model: JADE 340
| Specifications | |
|
Panel height
|
: 10-60 mm
|
|
Height of material to be edgebanded
|
: 14-64 mm
|
|
Thickness of material to edgebanded in rolls/strips
|
: 0.4-12 mm
|
|
Panel Overhang
|
: 25 mm
|
|
Minimum panel length
|
: 140 mm
|
|
Minimum panel width (with 140 mm width)
|
: 85 mm
|
|
Minimum panel width (with 250 mm length)
|
: 50 mm
|
|
Advance speed up to
|
: 18 m/min
|
|
Dust extraction system for each working unit 1 nozzle dia.
|
: 100 mm
|
|
Pneumatic connection
|
: 7 Bar
|
|
Glue pot capacity (approximate)
|
: 2 kg
|
|
Glue pot warm-up time at half load (approximate)
|
: 10 minutes
|
| Video | |
