Features

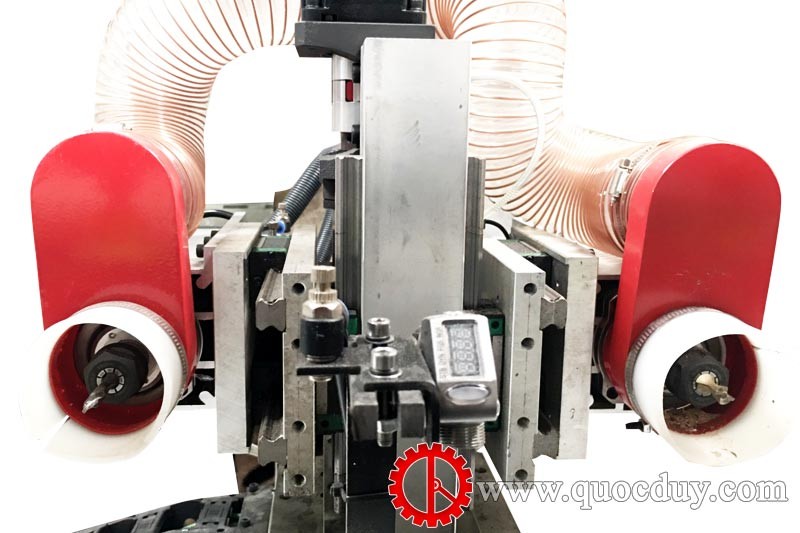

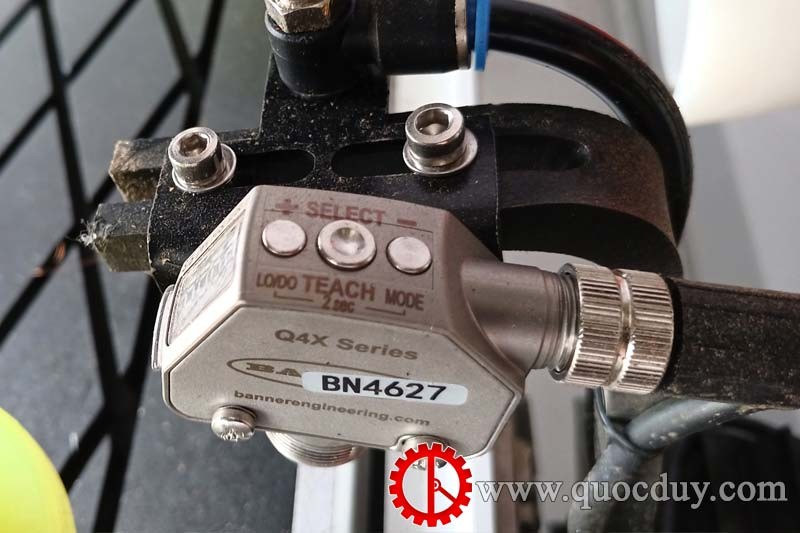

The machine performs a variety of machining such as: drilling round holes to create cam connections, milling grooves, running curved profiles, milling negative mortises, hitting positive mortises, etc. Equipped with 2 machining heads, you can choose the right tool for processing needs No need to repeat the calibration for machining positions Product length sensor Especially: with automatic Z-axis sensor up and down, helping the machine work in the X Y Z direction effectively, all 3 axes are controlled by a 0.75 kw servo motor for very high speed
Specifications
Max.working lenght	: 2500 mm
Max.working thickness	: 50 mm
Max.working depth	: 90 mm
Spindle motor	: 3.5 kw x 2
Spindle speed	: 0 - 18000 rpm
Empty working speed	: 80 m/min
Probe	: Germany
Net weight	: 1200 kg
Video

DOUBLE- HEAD CNC HORIZONTAL DRILLING

DOUBLE- HEAD CNC HORIZONTAL DRILLING

Model: SMXK 2400/2 CNC
