Features

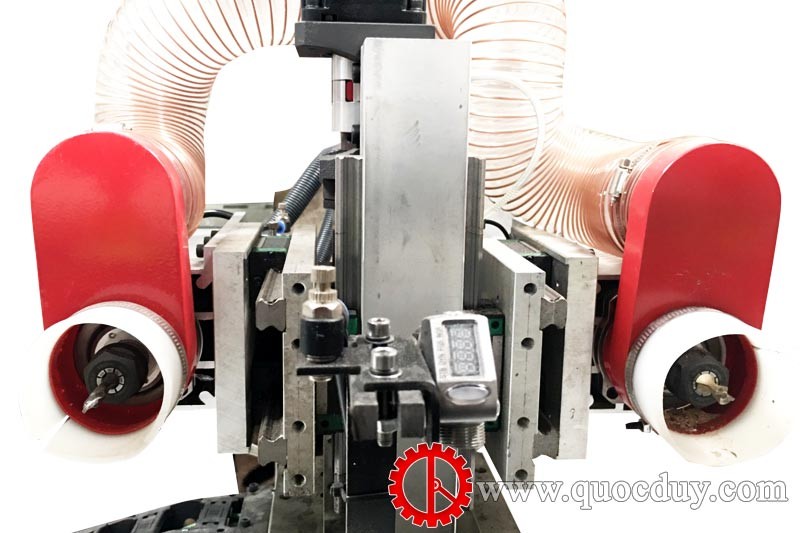

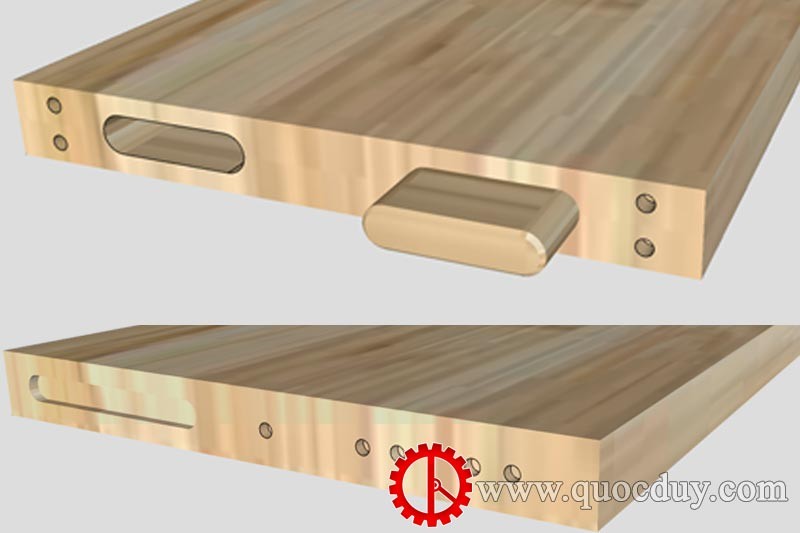

The machine performs a variety of machining such as: drilling round holes to create cam connections, milling grooves, running curved profiles, milling negative mortises, hitting positive mortises, etc. Equipped with 2 machining heads, you can choose the right tool for processing needs No need to repeat the calibration for machining positions Product length sensor Especially: with automatic Z-axis sensor up and down, helping the machine work in the X Y Z direction effectively, all 3 axes are controlled by a 0.75 kw servo motor for very high speed
Specifications
Max. working thickness	: 120 mm
Max. working depth (Axis Y)	: 90 mm
Working axis Z	: 70 mm
Max. working length	: 2500 mm
Motor	: 6 kw x 2
Motor servo axis X, Y, Z	: 0.75 Kw x 3
Air pressure	: 0.6-0.8 Mpa
Spindle speed	: 0- 18000 prm
Voltage	: AC300v/50Hz
Pneumatic	: Airtec
Power system	: Siemens
Ball bearing	: SHAC
Inverter	: inovance
Servo	: GPG made in Taiwan
Sensor	: Banner – Germany
Driver	: Dorna
