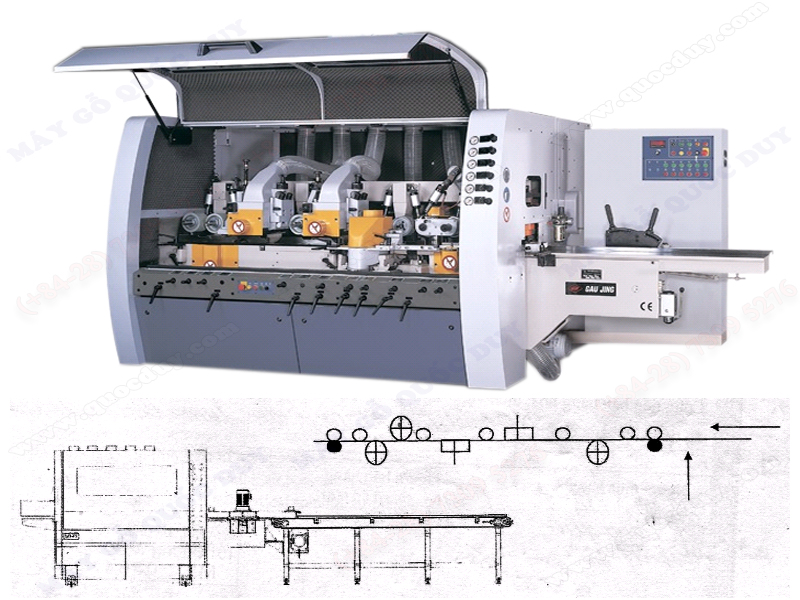

4 SIDE PLANER 5 SPINDLE
Model : GN-5S23GS
|
Specifications
|
|
|
Working width
|
: 10 – 230 mm
|
|
Working length
|
: 7 – 160 mm
|
|
Feed speed
|
: 6 – 60 m/m
|
|
Feed motor
|
: 10 HP (Inverter)
|
|
Motor of
|
: 1/2 HP
|
|
Min. Length cutting
|
: 150 mm
|
|
Spindle speed
|
: 6000 rpm
|
|
Spindle diameter
|
: Ø 40 mm
|
|
Adjusment vertical spindle
|
: 30 mm
|
|
Adjusment horizontal spindle
|
: 40 mm
|
|
Diameter of spindle planer 1
|
: Ø 100 – 150 mm
|
|
Motor of spindle No. 1
|
: 10 HP
|
|
Diameter of spindle planer 2,3
|
: Ø 100 – 180 mm
|
|
Motor of spindle No. 2,3
|
: 10 HP
|
|
Diameter spindle No.4
|
: Ø 100 – 180mm
|
|
Diameter spindle No.5
|
: Ø 100 – 205 mm
|
|
Motor of spindle No. 4
|
: 10 HP
|
|
Motor of spindle No. 5
|
: 10 HP
|
|
Adjusment table
|
: 12 mm
|
|
Infeed table lenght
|
: 1300 mm
|
|
Dimension machine
|
: 2980 x 1280 x 1720 mm
|
|
Net weight
|
: 3200 kg
|
|
Origion
|
: Taiwan
|
