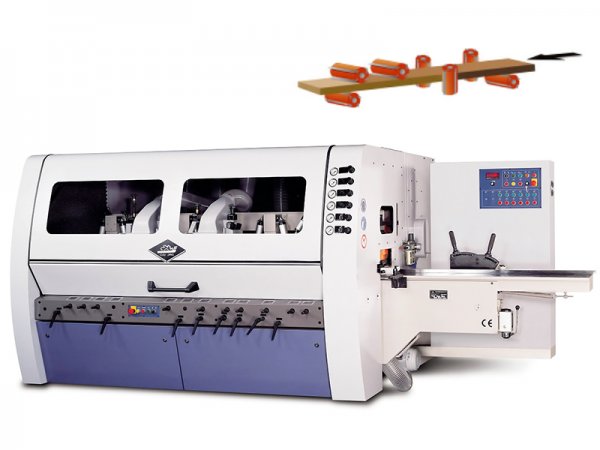

4 SIDE PLANER AND MOULDER
4 SIDE PLANER AND MOULDER
Model : GN-7S23
|
Specification
|
|
|
Planing width
|
10 – 230 mm
|
|
Planing thickness
|
7 – 160 mm
|
|
Feeding speed (inverter conttrol)
|
6 – 36 m/min
|
|
Min. length of cut
|
230 mm
|
|
Spindle speed
|
6000 rpm
|
|
Spindle diameter
|
Ø 40 mm
|
|
Adjustment of vertical spindle
|
60 mm
|
|
Adjustment of horizontal spindle
|
20 mm
|
|
Tool cutting circle, 1st bottom spindle, min. to max
|
125 – 160 mm
|
|
Tool cutting circle, vertical spindles, min. to max.
|
Ø 100 – 180 mm
|
|
Tool cutting circle, horizontal spindles, min. to max.
|
Ø 100 – 200 mm
|
|
Tool cutting circle, last bottom spindle, min. to max.
|
Ø 100 – 250 mm
|
|
Spindle motor
|
7.5 HP, 10 HP
|
|
Feeding motor (Inverter)
|
7.5 HP
|
|
Table adjustment
|
12 mm
|
|
Infeed table length
|
Ø 140 mm
|
|
Feed roller width
|
2 x 50 mm
|
|
Machine size
|
4670 x 1930 x 1800 mm
|
|
Packing zize
|
4820 x 2100 x 2120 mm
|
|
Net weight
|
4600 kgs
|
|
Gross weight
|
5200 kgs
|
