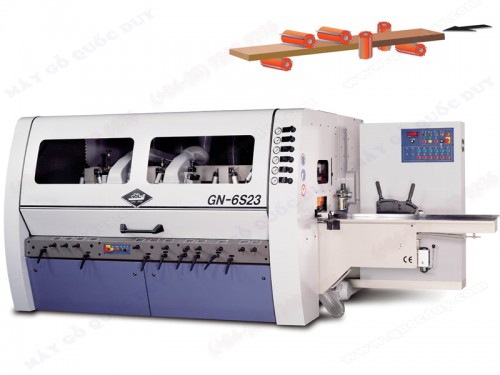

4 SIDE PLANER AND MOULDER
Whether you produce complicated or simple profile moulding at high production rate, GN-6S23 4-side planer & moulder offer unbeatable accuracy and productivity. The cast iron constructed GN series 4-side planer & moulder is designed and engineered to meet industry requirement for medium production and fine surface effect.
- :GN-6S23
- :Taiwan
- :12 months
- :Call
- :
 |  |
4 SIDE PLANER AND MOULDER
Model: GN-6S23
| Specifications | |
|
Planing width
|
: 10 – 230 mm
|
|
Planing thickness
|
: 7 – 160 mm
|
|
Feeding speed (inverter conttrol)
|
: 6 – 36 m/min
|
|
Min. length of cut
|
: 230 mm
|
|
Spindle speed
|
: 6000 rpm
|
|
Spindle diameter
|
: Þ 40 mm
|
|
Adjustment of vertical spindle
|
: 60 mm
|
|
Adjustment of horizontal spindle
|
: 20 mm
|
|
Tool cutting circle, 1st bottom spindle, min. to max.
|
: 125 – 160 mm
|
|
Tool cutting circle, vertical spindles, min. to max.
|
: Þ 100 – 180 mm
|
|
Tool cutting circle, horizontal spindles, min. to max.
|
: Þ 100 – 200 mm
|
|
Tool cutting circle, last bottom spindle, min. to max.
|
: Þ 100 – 250 mm
|
|
Spindle motor
|
: 7.5 HP, 10 HP
|
|
Feeding motor (Inverter)
|
: 7.5 HP
|
|
Table adjustment
|
: 12 mm
|
|
Infeed table length
|
: 1800 mm
|
|
Feed roller diameter
|
: Þ 140 mm
|
|
Feed roller width
|
: 2 x 50 mm
|
|
Machine size
|
: 4250 x 1930 x 1800 mm
|
|
Packing zize
|
: 4400 x 2100 x 2120 mm
|
|
Net weight
|
: 4100 kgs
|
|
Gross weight
|
: 4700 kgs
|
