4 SIDE PLANER & MOULDER
4 SIDE PLANER & MOULDER

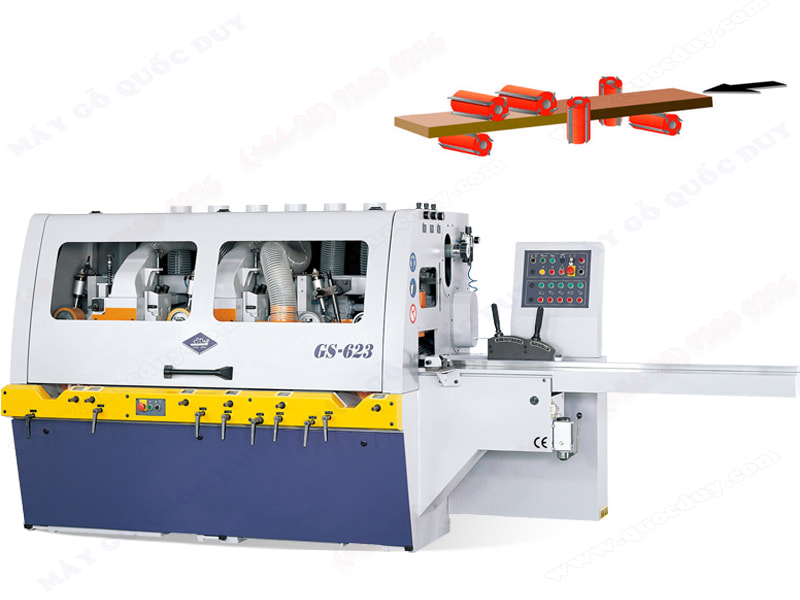

Model: GS-423/523/623
|
Thông số kỹ thuật
|
|||
|
Model
|
GS-423
|
GS-623
|
GS-523
|
|
Planing width (mm)
|
10 – 230
|
10 – 230
|
10 – 230
|
|
Planing thickness (mm)
|
7 – 125
|
7 – 125
|
7 – 125
|
|
Min working length(mm)
|
230
|
230
|
230
|
|
Feed speed (m/min)
|
6 – 25
|
6 – 25
|
6 – 25
|
|
Spindle speed (rpm)
|
6000
|
6000
|
6000
|
|
Spindle diameter (mm)
|
Þ 40
|
Þ 40
|
Þ 40
|
|
Adjustment of vertical spindle (mm)
|
30
|
30
|
30
|
|
Adjustment of horizontal spindle (mm)
|
20
|
20
|
20
|
|
First bottom horizontal spindle (mm)
|
Þ 100 – 150
|
Þ 100 – 150
|
Þ 100 – 150
|
|
Right/left vertical spindle (mm)
|
Þ 100 – 180
|
Þ 100 – 180
|
Þ 100 – 180
|
|
Top horizontal spindle (mm)
|
Þ 100 – 180
|
Þ 100 – 180
|
Þ 100 – 180
|
|
Bottom horizontal spindle (HP)
|
7.5
|
7.5
|
7.5
|
|
Right/left vertical spindle (HP)
|
10
|
10
|
10
|
|
Top horizontal spindle (HP)
|
7.5
|
7.5
|
7.5
|
|
Feed Motor (HP)
|
3
|
3
|
5
|
|
Elevate Motor (HP)
|
1/3
|
1/3
|
1/3
|
|
Table adjustment
|
12
|
12
|
12
|
|
Infeed table length (mm)
|
2000
|
2000
|
2000
|
|
Machine size (mm)
|
3230x1280x1720
|
3360x1280x1720
|
3930x1280x1720
|
|
Net weight (kg)
|
2800
|
3200
|
3700
|
