4 SIDES PLANER & MOULDER
4 SIDES PLANER & MOULDER

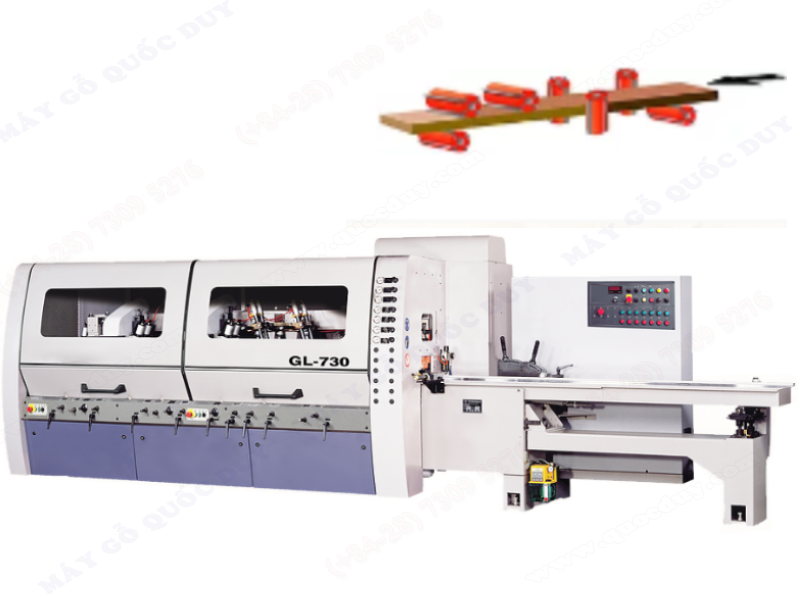

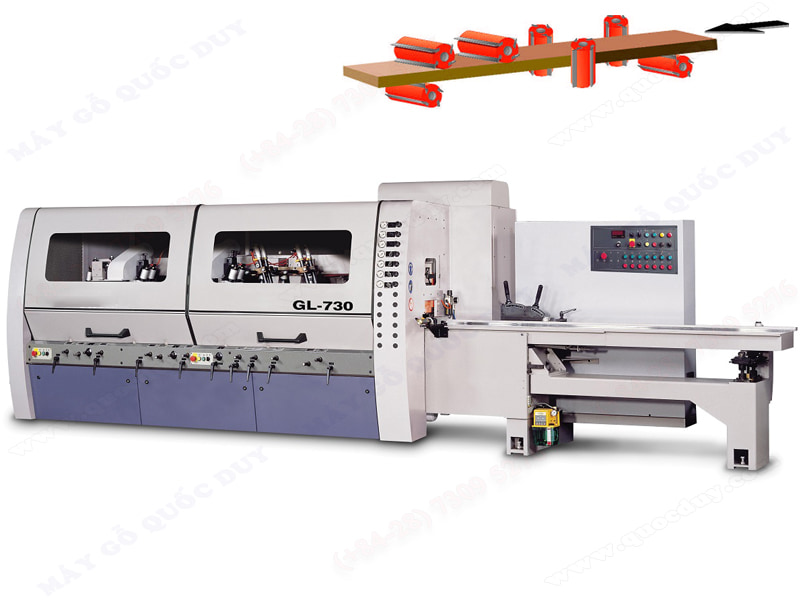

Model: GL-730
| Specification | |
|
Planing width
|
10-300 mm
|
|
Planing thickness
|
7-160 mm
|
|
Feeding speed
|
6-36 m/min
|
|
Min length of cut
|
230 mm
|
|
Spindle speed
|
6000 rpm
|
|
Spindle diameter
|
Ø 50 mm
|
|
Adjustment of vertical spindle
|
60 mm
|
|
Tool cutting circle, 1st bottom
|
Ø125 – 160 mm
|
|
Tool cutting circle, vertical
|
Ø 100 – 200 mm
|
|
Tool cutting circle, horizontal
|
Ø 100 – 200 mm
|
|
Tool cutting circle, last bottom
|
Ø 100 – 250 mm
|
|
Spindle motor
|
10 Hp, 15 Hp
|
|
Feeding motor inverter
|
10 Hp
|
|
Table adjustment
|
12 mm
|
|
Infeed table length
|
1800 mm
|
|
Feed roller diameter
|
Ø 40 mm
|
|
Feed roller width
|
3 x 50 mm
|
|
Machine size
|
6100 x 2000 x 1800 mm
|
|
Net weight
|
7300 kgs
|
