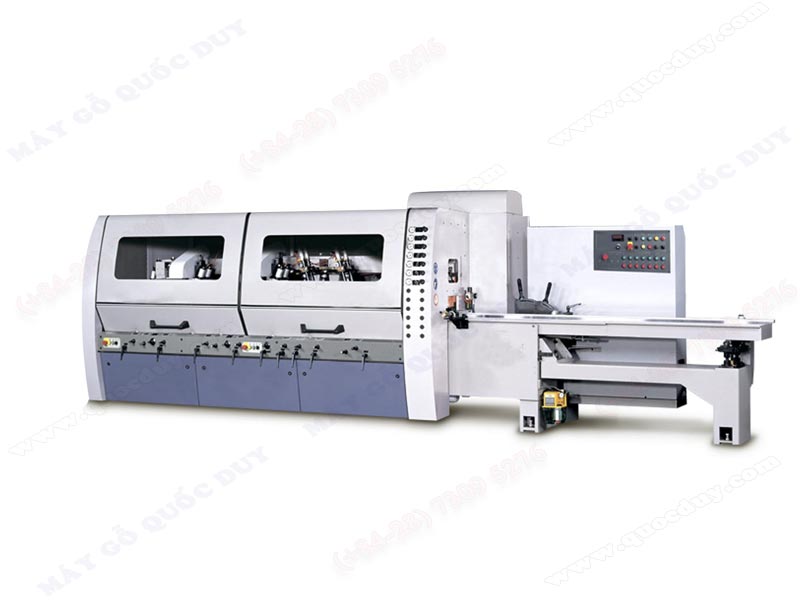

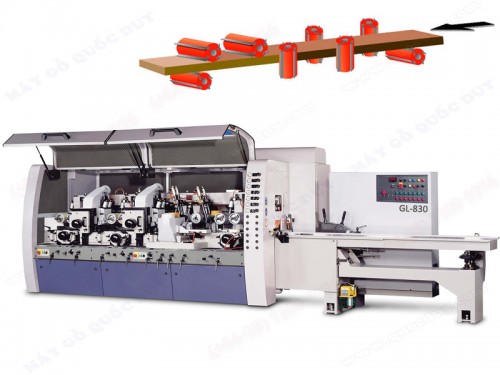

4 SIDES PLANER - MOULDER

Model: GL-830

Specifications
Planing width	10-300 mm
Planing thickness	7-160 mm
Feeding speed	6-36 m/min
Min length of cut	230 mm
Spindle speed	6000 rpm
Spindle diameter	Ø 50 mm
Adjustment of vertical spindle	60 mm
Tool cutting circle, 1st bottom	Ø 125 – 160 mm
Tool cutting circle, vertical	Ø 100 – 200 mm
Tool cutting circle, horizontal	Ø 100 – 200 mm
Tool cutting circle, last bottom	Ø 100 – 250 mm
Spindle motor	10 Hp, 15 Hp
Feeding motor inverter	10 Hp
Table adjustment	12 mm
Infeed table length	1800 mm
Feed roller diameter	Ø 40 mm
Feed roller width	3 x 50 mm
Machine size	6100 x 2000 x 1800 mm
Net weight	7900 kgs
