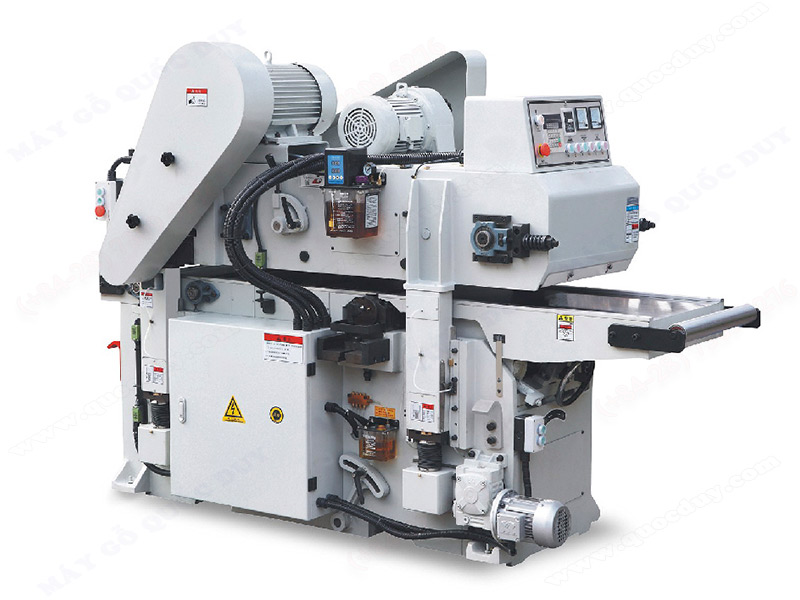

AUTOMATIC DOUBLE-SIDED PLANING MACHINE

Model: SM-635BRD

Featurese
- Cast iron bed with good shock absorption and stability is machined by CNC machining center to provide a good foundation for cutter shaft and feed. - Standard carbide helical shaft, high-precision imported bearings for the machine to provide a very healthy heart. - The use of crawler-type elastic pressure claw (with lifting function) according to the thickness of the wood, the degree of banding choose elastic pressure claw feeding distance, the workpiece processing accuracy is greatly improved, feeding powerful. - Machine tool knife axis and the pressure roller and the smooth feeding mechanism, equipped with manual fine-tuning and motorized mechanism, so that posittioning fast and accurate. Pressure planing part of the upper and lower feed roller linkage feeding, strong thrust balance. - The use of imported electrical components, so that the whole control sensitive and safe. - Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness, accuracy up to 0.1mm, standard speed control feeding. - Ountertops hard chrome plated special treatment, wear-resistant, smooth.
Specifications
Working thickness	: 10-180 mm
Working width	: 25-610 mm
Min. working length	: 260 mm
Max. cutting depth	: upper 4mm, lower 4mm
Cutting spindle dia.	: 101mm
Cutting spindle speed	: 5500 r/min
Feeding speed	: 3-20 m/min
Upper cutting spindle motor	: 11 kw
Bottom cutting spindle motor power	: 7.5 kw
Feeding motor power	: 3.7 kw
Lifting motor power	: 0.37 kw
Total power	: 22.57 kw
Dust exit dia.	: Ø 150 mm
Voltage	: 380V
Machine size	: 2500 x 1200 x 1750 mm
Packing size	: 2600 x 1300 x 1850 mm
Net weight	: 3100kgs
