DOUBLE SURFACE
double-surface machine GT-635ARD Working width 635mm. Equipped with digital positioning control. Feeding inverter with an additional gear reducer...
- :GT-635ARD
- :Taiwan
- :12 month
- :Call
- :
 |  |

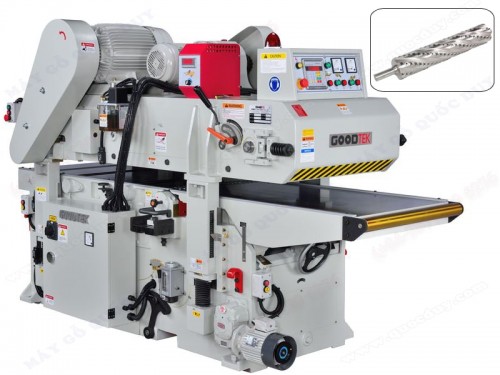

DOUBLE SURFACE
Model : GT-635ARD
• Working width 635mm(25")
• Equipped with digital positioning control
• Equipped with NO. 1 helical cuttehead.
• Quick thickness setting device.
• Slideways are lubricated by central hand lubricator.
• Feeding inverter with an additional gear reducer.
| Specifications | |
|
Max.working width
|
: 635mm ( 25" )
|
|
Max.working thickness
|
: 200mm ( 8" )
|
|
Min.working thickness
|
: 10m
|
|
Min.working lenght
|
: 310mm
|
|
Knife Nos. On Bottom Cutterhead
|
: 156pcs
|
|
Knife Sizes
|
: TCT 15x15x2.5mm
|
|
Cutterhead Diameter
|
: Ø126mm
|
|
Spindle speed
|
: 5000RPM
|
|
Feeding speed
|
: 8-24m/min
|
|
Dust Hood Outlet Diameter
|
: 6" X 2
|
|
Table Surface Area
|
: 27"x103"
|
|
Top Cutterhead Drive Motor
|
: 20( 25HP)
|
|
Buttom Cutterhead Drive Motor
|
: 15( 20HP)
|
|
Feeding Motor
|
: 3HP
|
|
Elevation Motor
|
: 1/2HP
|
|
Machine size
|
: 2700x1145x1720mm
|
|
Net Weight
|
: 3000kg
|
|
Packing size
|
: 2780x1240x1940mm
|
|
Gross Weight
|
: 3500kg
|
