Double Sided Planer

Double Sided Planer
  • Double Sided Planer REC-635A Table are equipped with five rollers to achieve greater feeding effect, Motor employs Y-Δ start...

  • :REC-635A
  • :Taiwan
  • :12 months
  • :Call
  • :

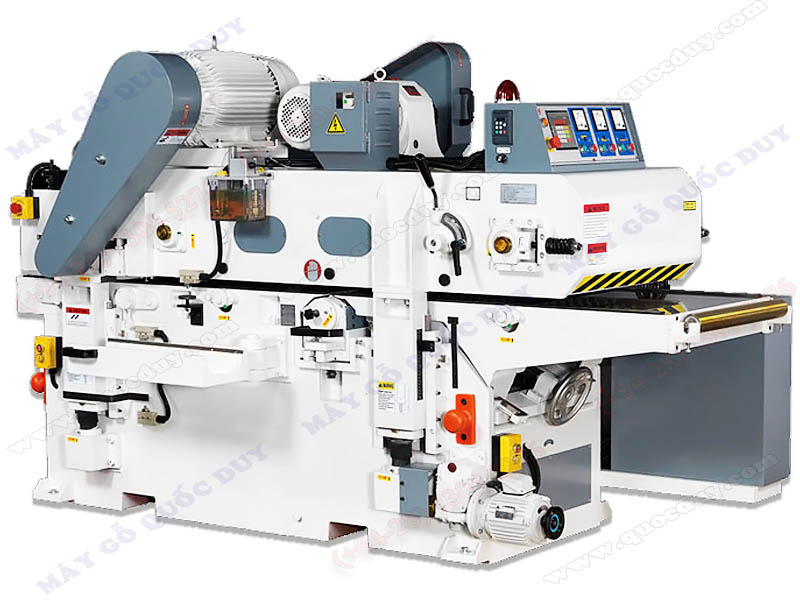

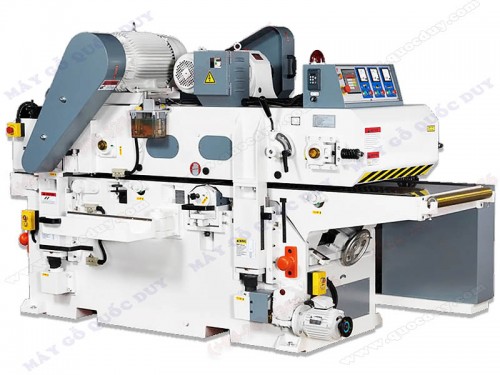

DOUBLE SIDE PLANER

Model: REC-635A

may-bao-2-mat-dao-xoan-rec
 Features

- Table are equipped with five rollers to achieve greater feeding effect,

- Motor employs Y-Δ start.

- Feed chain is automatically lubricated.

- Belts on bottom cutterhead are fast changed.

- Spiral top and bottom cutterheads are available (optional).

- Centralized lubrication system provides added convenience for elevation mechanism.

- Table surface is hard chrome plated and precision ground for smooth feed and maximum wear-resistance.

- Emergency stop buttons are provided at the front and back sides of the machine.

Specifications
Max. Working width
: 635 mm
 Max. Working thickness
: 200 mm
 Min. Working thickness
: 8 mm
 Min. Working length
: 315 mm
 Table size
: 686 x 2616 mm
 Knife size
: 15 x 15 x 2.5 mm
 Cutter head diameter
: Ø130 mm
 Numbers of spiral Knife
: 6T x 156 pcs x 2 sets
 Cutter head speed
: 5000 – 5500 RPM
 Feeding speed
: 8 – 22 m/min
 Top cutter head motor
: 20( 25HP)
 Buttom cutter head motor
: 15( 20HP)
 Feeding motor
: 3 HP
 Elevation motor
: 1/2 HP
 Dimension machine
: 2770 x 1570 x 1720 mm
 Net weight
: 3200kg
Video
