FULLY AUTOMATIC FINGER JOINT SYSTEM

FULLY AUTOMATIC FINGER JOINT SYSTEM
  • :IAT-620/C
  • :Taiwan
  • :12 months
  • :Call
  • :

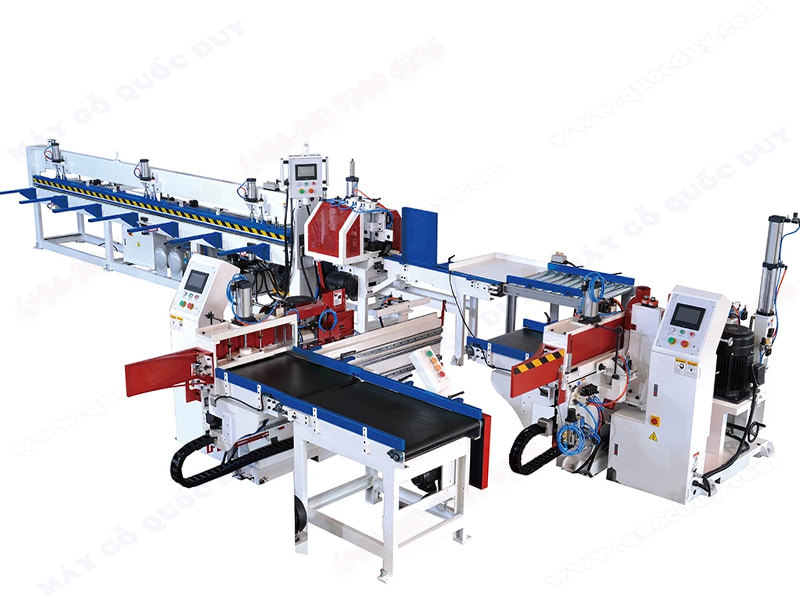

FULLY AUTOMATIC FINGER JOINT SYSTEM

Model: IAT-620/C

IAT-620-C-may-ghep-doc-tu-dong-min
Specifications
Working length
: 150 mm ~ 800 mm
Working width
: 25 mm ~ 100 (150) mm
Working thickness
: 15 (12) mm ~ 75 mm
Vertical capacity 25x60x400
: 20 m/min
Horizontal capacity 22x50x350
: 20 m/min
Shaper’s table width
: 620 mm
Power of finger spindle
: 15 Kw (18.75 Kw)
Power of cut-off saw
: 3.75 Kw (11.25 Kw)
Power of scoring saw
: 1.5 Kw
Power of table movement
: Inverter 1.5 Kw
Shaper max. cycle speed
: 4 / min
Finger assembler working length
: 5m
Power of feeding inverter
: 5.625 Kw
Power of hydraulic pump
: 3.75 Kw (high speed)
Assembler max. working cycle
: 4
Auto cut - length setting device
: Optional
Pneumatic high - speed solennoid valve
: Optional
Safety fence device
: Optional
