FULLY AUTOMATIC FINGER JOINT SYSTEM
FULLY AUTOMATIC FINGER JOINT SYSTEM

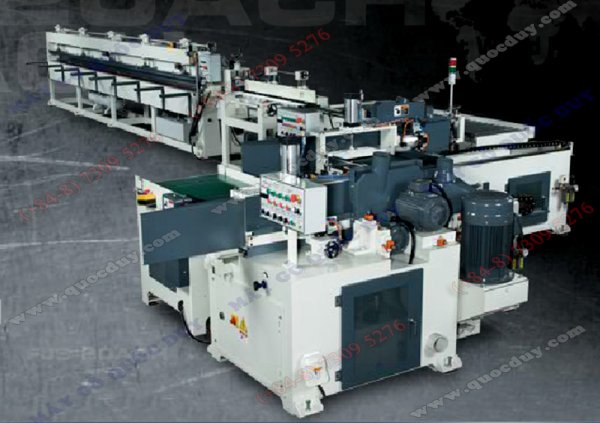

Model: FJS 20AH
Specifications
|
|
FINGER JOINTER SHAPER MACHINE LEFT
|
|
Max. length of table
|
630 mm
|
Max. length and high of feed
|
800 x 150 mm
|
Min. length and high of feed
|
150 x 20 mm
|
Speed of cut off saw
|
3600 rpm – 60Hz, 3000 rpm – 50Hz
|
Speed of finger cutter
|
6000 rpm – 60Hz, 5400 rpm – 50Hz
|
Cut of saw + trimming cutter
|
7,5 HP
|
Finger cutter
|
20 HP
|
Conveyor driving motor
|
1/2 HP
|
Lower scoring saw
|
1 HP
|
Hydraulic pump
|
2 HP
|
Machine size
|
2120 x 1400 x 1350 mm
|
Net weight
|
1420 kg
|
FINGER JOINTER SHAPER MACHINE RIGHT
|
|
Max. length of table
|
630 mm
|
Max. length and high of feed
|
800 x 150 mm
|
Min. length and high of feed
|
150 x 20 mm
|
Speed of cut off saw
|
3600 rpm – 60Hz, 3000 rpm – 50Hz
|
Speed of finger cutter
|
6000 rpm – 60Hz, 5400 rpm – 50Hz
|
Cut of saw + trimming cutter
|
7,5 HP
|
Finger cutter
|
20 HP
|
Conveyor driving motor
|
1/2 HP
|
Upper scoring saw
|
1 HP
|
Lower scoring saw
|
1 HP
|
Hydraulic pump
|
2 HP
|
Machine size
|
2580 x 1400 x 1350 mm
|
Net weight
|
1510 kgs
|
AUTO FINGER JOINTING ASSEMBLY PRESS
|
|
Length of working table
|
6200 mm
|
Available length of workpiece
|
2500 – 6200 mm
|
Available thickness of workpiece
|
20 – 80 mm
|
Available width of workpiece
|
30 – 150 mm
|
Spindle diameter
|
25.4 mm
|
Saw diameter
|
305 mm
|
Spindle speed
|
3600 rpm, 60Hz
|
Conveyor belt
|
1/2 Hp
|
Cut off saw
|
3 Hp
|
Hydraulic pump
|
5 Hp
|
Feeding speed
|
70 m/p
|
Air consumption
|
6 kg/cm2
|
Machine size
|
7250 x 1270 x 1550 mm
|
Packing size
|
7400 x 900 x 1700 mm
|
Net weight
|
2550 kg
|
