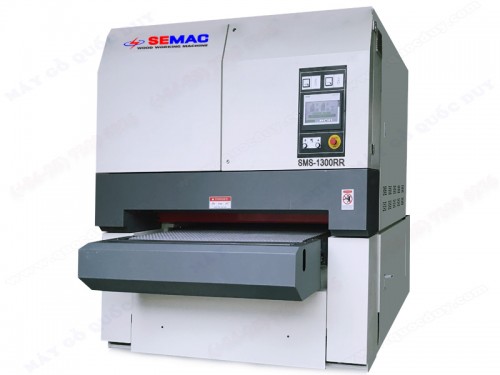

LACQUERED PANEL SANDER 1300MM

Model: SMS-1300RR

Specification
Working width	: 1300 mm
Working thinkness	: 3-100 mm
Working length	: 380 mm
Motor power of the first sanding unit	: 11 Kw
Motor power of the second sanding unit	: 11 Kw
Conveyor motor	: 3 Kw
Lifting motor	: 1.1 kw
Motor polishing	: 0.37 Kw
Other motor	: 0.05 Kw
Total power	: 26.52 Kw
Feed motor	: 5-26 m/phút
Dimension of abrasive belt	: 1330 x 2620 mm
Volume of suched air	: 8500 m3/hr
Pressure air comsumption	: 17 m3/hr
Air pressure	: 0.6 mpa
Machine size	: 2112 x 2534 x 3000 mm
Net weight	: 4200 Kg
