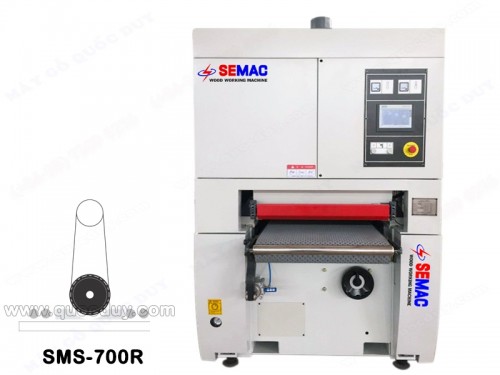

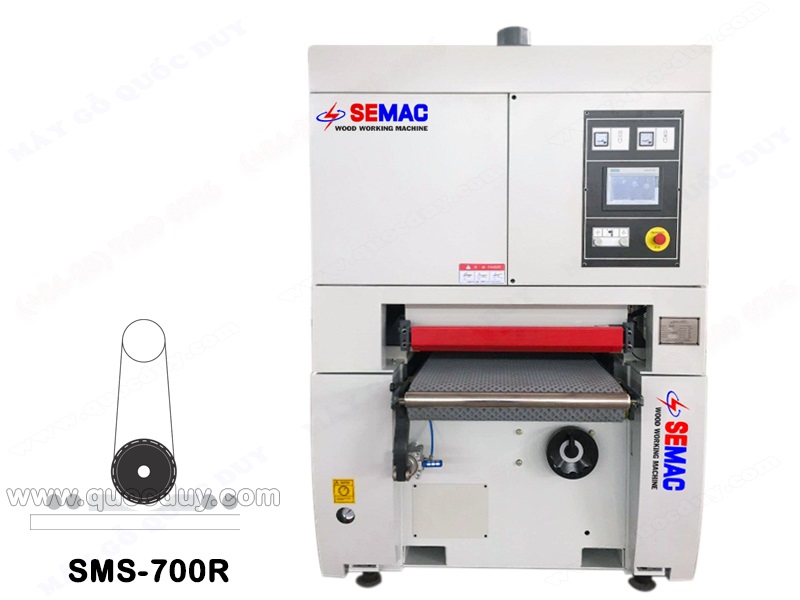

LACQUERED PANEL SANDER

Model: SMS-700R



Specification
Max. Working width	: 700
Min. Working length	: 310
Working thinkness	: 2 – 160 mm
Dimension of abrasive belt	: 730 x 1900 mm
Feeding speed	: 5 – 30 m/min
Motor #1	: 7.5 kw
Motor shaft polishing	: 5.5 kw
Conveyor motor	: 1.5 kw
Lift table motor	: 0.55 kw
Rush roller motor	: 0.37 kw
Air pressure	: 0.6 Mpa
Exhaust volume requirement	: 6500 m3/h
Total power	: 15.47 Kw
Machine size	: 1415 x 2000 x 2175 mm
Net weight	: 2600 kg
