LACQUERED PANEL SANDER

  • :PR-25B/PR-37B
  • :Taiwan
  • :12 month
  • :Call
  • :

LACQUERED PANEL SANDER

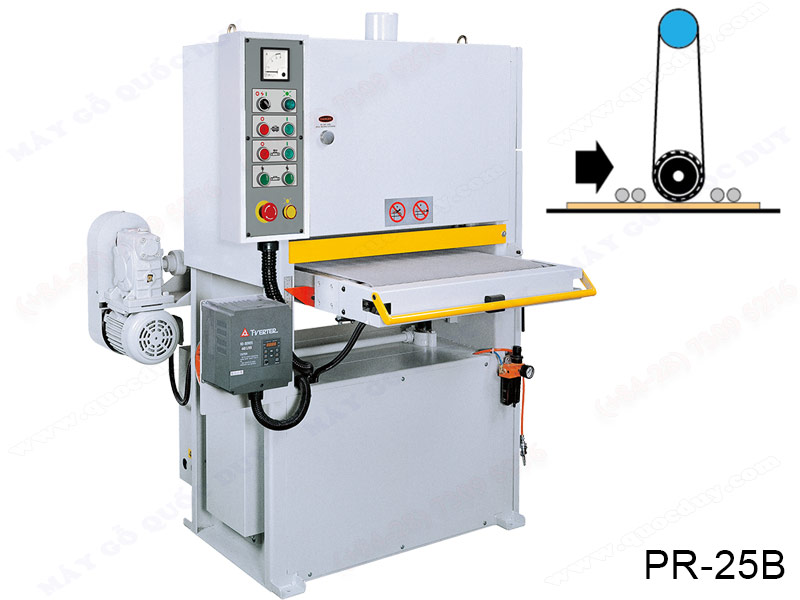

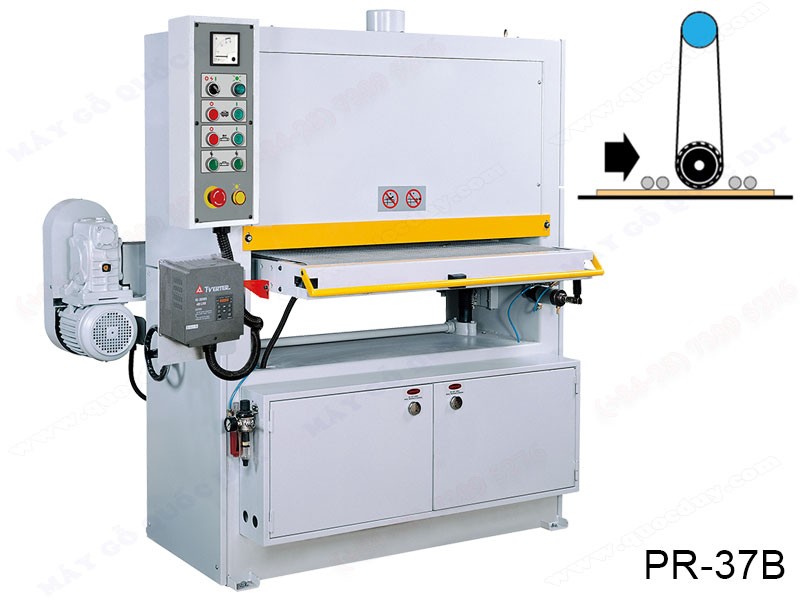

Model:  PR-25B, PR-37B

may-cha-nham-son-pr37b_1
Advantage

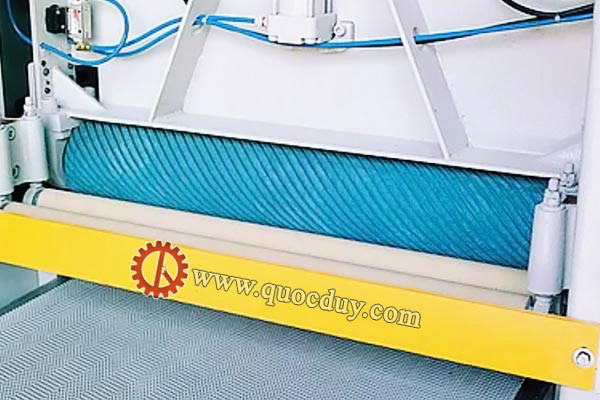

- Built at outfeed end of the machine, this panel cleaning brush
roller clean powder on the sanded panel

- It can easily control sanding belt speed, providing wide range of
belt speed to match the variety of different paints.

- The top dust hood sucks all dust removed by the air jet cleaner. This prevents dust accumulating on the photocell sensor.

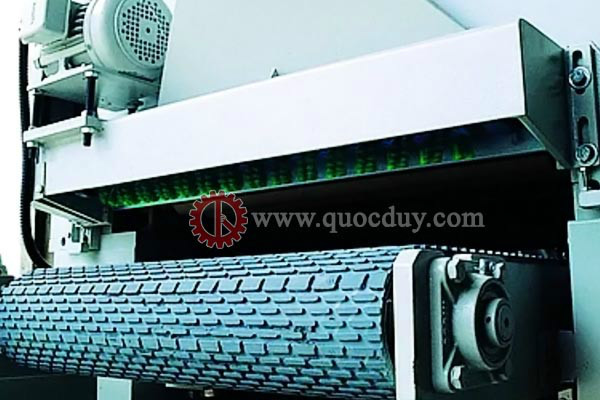

- The conveyor belt speed is controlled by a variable speed unit.
Feed speed can be vried as desired to suit all types of workpiece
material, assuring superior sanding quality.

Specifications
MODEL
PR-25B
PR-37B
Working width
610mm
 910 mm
Working height
125 mm
 125 mm
Main motor standard
5 HP
 7.5 HP
Feed motor
1 HP
 1 HP
Table motor
½ HP
 ½ HP
Feed speeds
6 – 23 m/phút
 6 – 23 m/phút
Sanding belt size
609.6 x 1219.2 mm
 940 x 1524 mm
Compressed air required
5 kg/cm2
 5 kg/cm2
Exhaust volume requirement
2060 m3/h
 3090 m3/h
Net weight
620 kg
 940 kg
Gross weight
740 kg
 1150 kg
Dimensions (L x W x H)
1270x1320.8x1574.8 mm
 1473x1422x1727 mm
Packing size
1320.8x1371.6x1778 mm
 1524x1473x1956 mm
