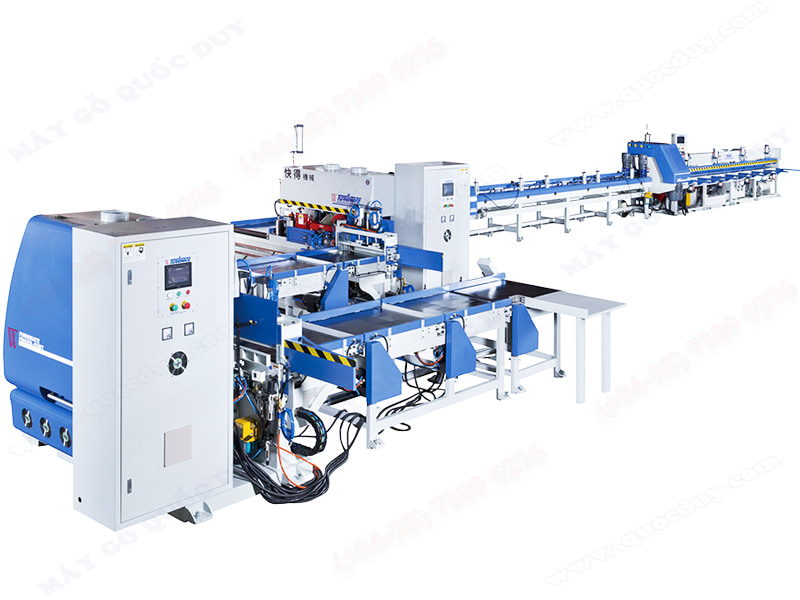

ULTRA-HIGH-SPEED SERVO TYPE FULLY AUTO FINGER JOINT SYSTEM
ULTRA-HIGH-SPEED SERVO TYPE FULLY AUTO FINGER JOINT SYSTEM
Model: SAT-620F
| Specifications | |
|
Available width of workpiece
|
: 620mm – 660mm
|
|
Available length of workpiece
|
: L-900mm x 2
|
|
Power
|
: ½ HP
|
|
Feeding speed
|
: 55m/min
|
|
Finger cutter FSR – 66S (Finger Milling knife right end)
|
|
|
Available width of workpiece
|
: 620mm ~ 660mm
|
|
Available length of workpiece
|
: Từ 150mm ~ 800mm
|
|
Workpiece thickness
|
: Từ 15mm ~ 100mm
|
|
Feeding speed
|
: 55m/min
|
|
Capacity push table pushers
|
: 2.9 KW
|
|
The power of the conveyor belt hybrid
|
: ½ HP
|
|
Axis motor
|
: 30HP
|
|
Spindle speed
|
: 5800 rpm
|
|
Size of finger cutter
|
: ID70xOD210mm x4T
|
|
Power of cut-off saw
|
: 15HP
|
|
Spindle speed
|
: 4800 rpm
|
|
Size cut-off saw
|
: 255mm x 100T x 5mm
|
|
Size scoring saw
|
: 180mm x 60T x 5mm
|
|
Spindle speed
|
: 2850 rpm
|
|
Automated Embossing System: APC – 66 (Automatic feeder unit)
|
|
|
Max. Workpiece width
|
: 660mm
|
|
Max. length x height of workpiece
|
: 150mm ~ 900mm
|
|
Workpiece thickness
|
: 15mm ~ 100mm
|
|
Feeding speed
|
: 55m/ min
|
|
Transmission capacity
|
: ½ HP
|
|
Motor conveyor cleaning
|
: ½ HP
|
|
Motor conveyor
|
: 3 HP
|
|
Motor sevo
|
: 2 KW
|
|
Vacuum motors
|
: 5 HP
|
|
High-speed embossing system HSC - 65
|
|
|
Available width of workpiece
|
: 20mm ~ 150mm
|
|
Machine length
|
: 6500mm
|
|
Workpiece thickness
|
: 15mm ~ 90mm
|
|
Feeding speed
|
: 10m ~ 90m/ min
|
|
Transmit Capacity
|
: 3 HP
|
|
Conveyor system DTC-66A (Dual conveyor table)
|
|
|
Available width of workpiece
|
: 620mm ~ 660mm
|
|
Available length of workpiece
|
: L = 900mm x 2
|
|
Capacity
|
: ½ HP
|
|
Feeding speed
|
: 55m/min
|
|
Finger cutter FSL-66S (Finger Milling knife left end)
|
|
|
Available width of workpiece
|
: 620mm ~ 660mm
|
|
Available length of workpiece
|
: 660mm
|
|
Workpiece thickness
|
: 150mm ~ 800mm
|
|
Working table
|
: 15mm ~ 100mm
|
|
Feeding speed
|
: 55m/min
|
|
Saw wheel motor
|
: 30 HP
|
|
Size of finger cutter
|
: ID70mm x OD210mm x 4mm x 4T
|
|
Spindle speed
|
: 5800 rpm
|
|
Power of cut-off saw
|
: 15 HP
|
|
Size cut-off saw
|
: 255x100Tx5 mm
|
|
Spindle speed
|
: 4800 rpm
|
|
Saw wheel motor
|
: 3 HP
|
|
Size scoring saw
|
: 180mm x 60T x 5mm
|
|
Motor conveyor
|
: ½ HP
|
|
Motors moving tables
|
: 2.9 KW
|
|
Automated Embossing System: SAP – 660
|
|
|
Automatic feeder unit
|
|
|
Max. Workpiece width
|
: 660mm
|
|
Max. length x height of workpiece
|
: 150mm ~ 900mm
|
|
Feeding speed
|
: 55m/ min
|
|
Transmission capacity
|
: ½ HP
|
|
Motor conveyor cleaning
|
: ½ HP
|
|
Motor conveyor
|
: 3 HP
|
|
Motor sevo
|
: 2 KW
|
|
Vacuum motors
|
: 5 HP
|
|
High-speed embossing system HSC - 65
|
|
|
Max. Workpiece width
|
: 20mm ~ 150mm
|
|
Machine length
|
: 6500mm
|
|
Workpiece thickness
|
: 15mm ~ 90mm
|
|
Feeding speed
|
: 10m ~ 90m/ min
|
|
Transmission capacity
|
: 3 HP
|
|
Input system
|
|
|
Max. Workpiece width
|
: 20mm ~ 150mm
|
|
Machine length
|
: L = 6200 mm
|
|
Workpiece thickness
|
: 15mm ~ 75 mm
|
|
Freguency inverter
|
: 7.5 HP
|
|
Feeding speed
|
: 10~70 m/min
|
|
Motor cut
|
: 5 HP
|
|
Size scoring saw
|
: 355x120Tx25.4 mm
|
|
Cutting speed
|
: 2850 rpm
|
|
Hydraulic pump motor
|
: 10 HP
|
|
Capacity transplant
|
: 3- 8 pcs/min
|
