Specifications
Working length	: ≥ 160mm
Working width	: ≥ 70mm

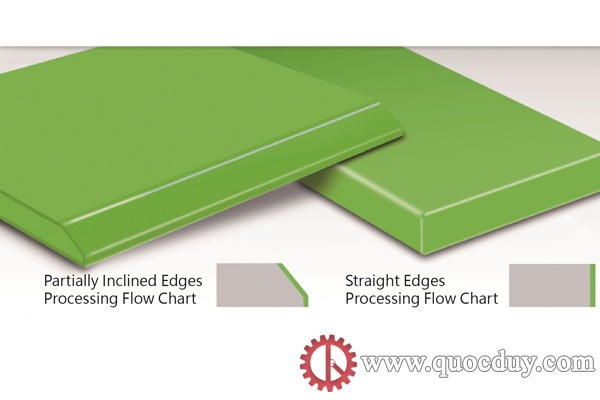

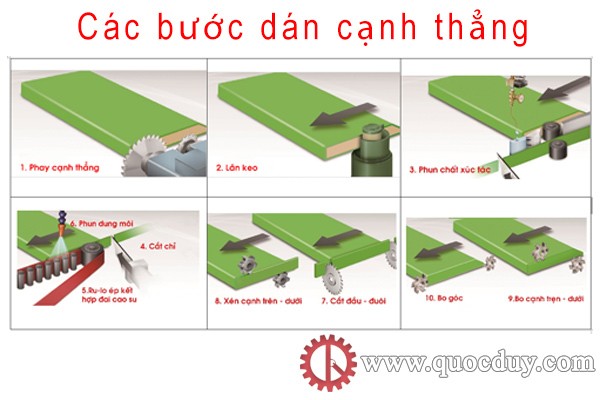

Working thickness range for straight edges	: 9 ~ 50 mm

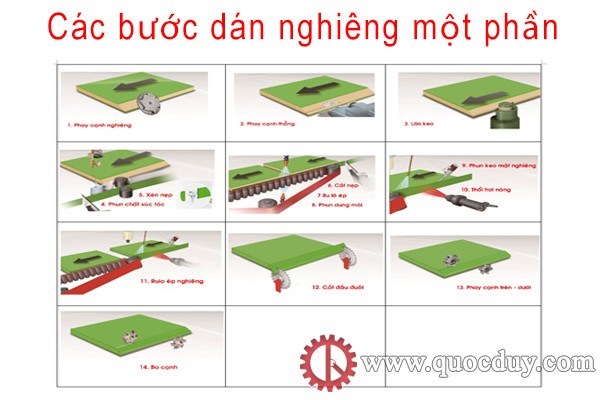

Working thickness range for partially inclined edges	: 15-25mm
Edge banding tape thickness	: 0.4-2mm
Air pessure	: 5-6kg/cm2
Feeding speed	: 5-10m/phút
Tilting surface forming	: 3.75kw
1st Pre. fine trimming unit	: 0.55kw
2nd Pre. Fine trimming unit	: 0.85kw
Front and rear end cut	: 0.35kw x 2
Top and bottom trimming units (straight)	: 0.55kw x 2
Top and bottom trimming units (inclination)	: 0.55kw x 2
Top and bottom corner rounding trimming units	: 0.35kw x 2
Net weight	: 4140 kg
Machine size	: 10000 x 1400 x 1540 mm
Video

AUTOMATIC EDGE BANDING MACHINE

AUTOMATIC EDGE BANDING MACHINE

Model : ECE- 900K
