Specifications
Max. load	: 2 tons
Max. lifting height	: 1.2M
Hydraulic pump motor	: 2HP
Machine size	: 2200 × 1000 × 500 mm
Net weight	: 800 kgs

Specifications
X axis stroke	: 1300mm
Y axis stroke	: 2500mm
Z axis stroke	: 220mm
Max speed	: 0-60m/min
Accuracy	: ±0.05mm
Code	: G code
Voltage	: 380V/50Hz

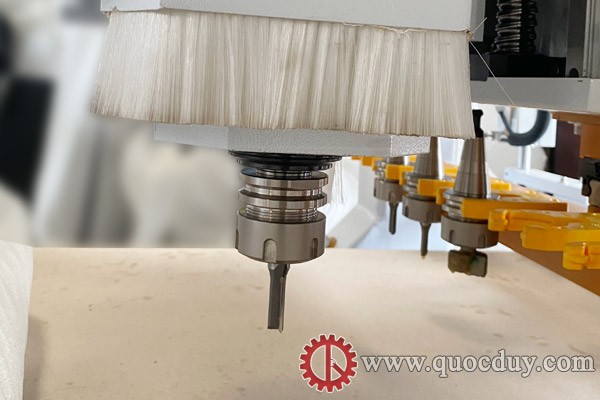

Spindle capacity	: HSD 9 kw

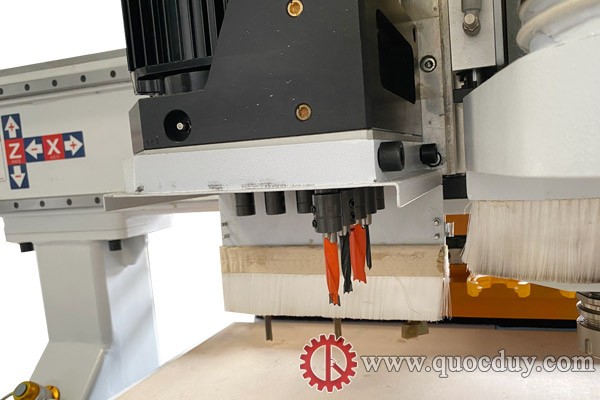

Drilling shaft capacity	: 2.2 kw

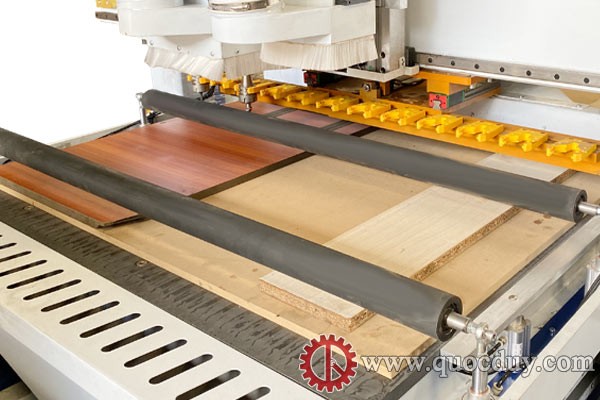

Roller	: 2
Tool magazine	: 12
Spindle speed	: 6000-24000 rpm
Machine size	: 3500 x 2550 x 2380 mm
Shaft Drive Mode	: X/Y axis rack and pinion drive Z- axis screw drive
Servo motor	: Leadshine
Electric	: Siemens
Inverter	: Delta
Cylinders	: AIRTEC
Control system	: Weihong
Machine body	: Thick wall housing pipe welding plus annealing stress relief treatment

Specifications
This equipment body structure is aluminum, charming and beautifull
It is suitable for feeding every kind of flat workpiece
Inverter speed control
Width range	: 1300mm
Length range	: 2500mm
Loading	: 50 Kg

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOADING

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOADING

Model: SM-1325R1BP-AL
