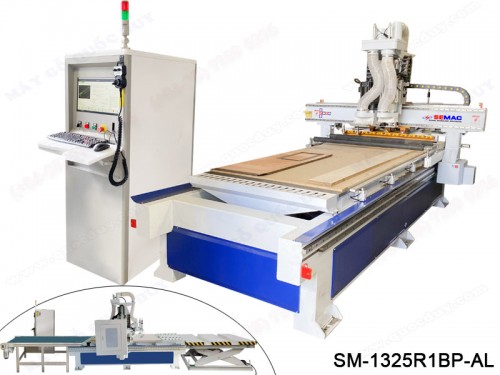

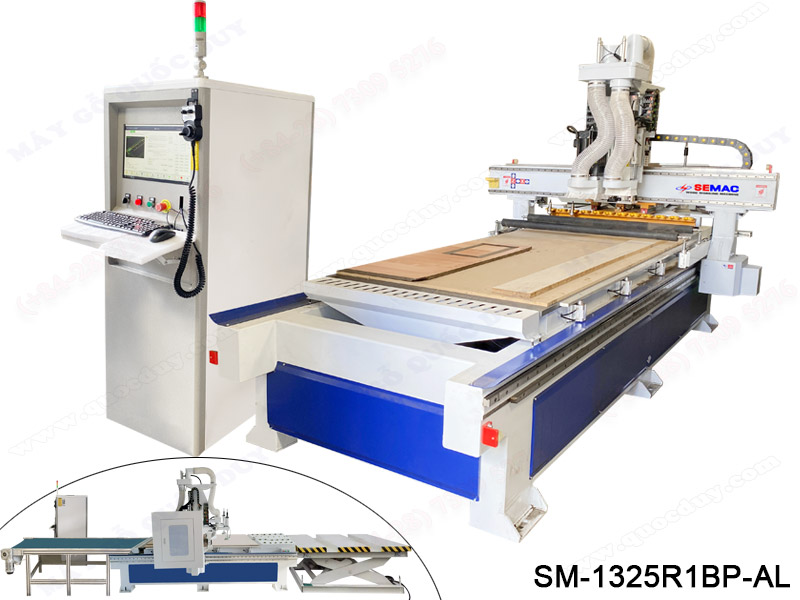

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOADING
CNC ROUTER MACHINE WITH BORING UNIT AUTOLOADING
Model: SM-1325R1BP-AL
1. HYDRAULIC LIFTING TABLE:
 |
|
| Specifications | |
|
Max. load
|
: 2 tons
|
|
Max. lifting height
|
: 1.2M
|
|
Hydraulic pump motor
|
: 2HP
|
|
Machine size
|
: 2200 × 1000 × 500 mm
|
|
Net weight
|
: 800 kgs
|
2. CNC ROUTER MACHINE WITH BORING UNIT – Model: SM-1325-R1BP
| Specifications | |
|
X axis stroke
|
: 1300mm
|
|
Y axis stroke
|
: 2500mm
|
|
Z axis stroke
|
: 220mm
|
|
Max speed
|
: 0-60m/min
|
|
Accuracy
|
: ±0.05mm
|
|
Code
|
: G code
|
|
Voltage
|
: 380V/50Hz
|
|
Spindle capacity
|
: HSD 9 kw
|
|
Drilling shaft capacity
|
: 2.2 kw
|
|
Roller
|
: 2
|
|
Tool magazine
|
: 12
|
|
Spindle speed
|
: 6000-24000 rpm
|
|
Machine size
|
: 3500 x 2550 x 2380 mm
|
|
Shaft Drive Mode
|
: X/Y axis rack and pinion drive Z- axis screw drive
|
|
Servo motor
|
: Leadshine
|
|
Electric
|
: Siemens
|
|
Inverter
|
: Delta
|
|
Cylinders
|
: AIRTEC
|
|
Control system
|
: Weihong
|
|
Machine body
|
: Thick wall housing pipe welding plus annealing stress relief treatment
|
3. BELT CONVEYORS
| Specifications | |
|
This equipment body structure is aluminum, charming and beautifull
|
|
|
It is suitable for feeding every kind of flat workpiece
|
|
|
Inverter speed control
|
|
|
Width range
|
: 1300mm
|
|
Length range
|
: 2500mm
|
|
Loading
|
: 50 Kg
|
