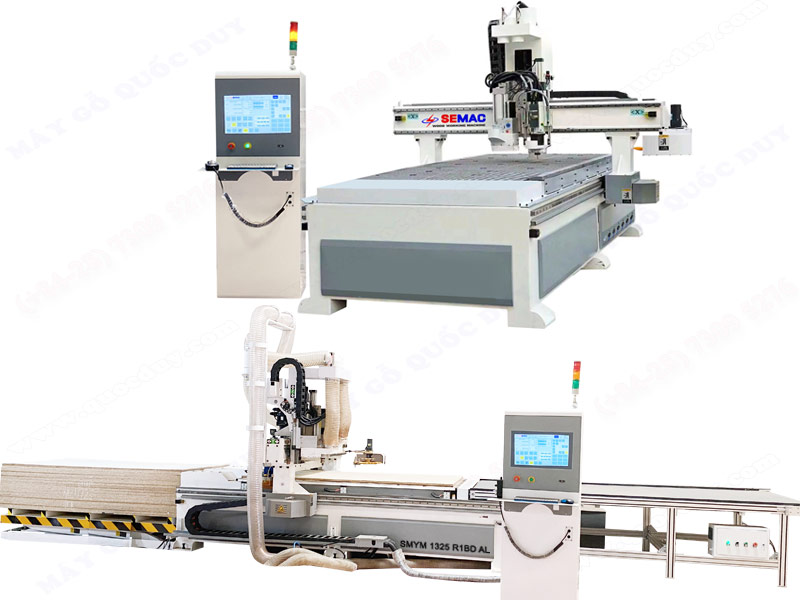

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOAD
CNC ROUTER MACHINE WITH BORING UNIT AUTOLOAD
Model: SMYM 1325R1BD AL
|
Machine Components
|
|
|
- Control system TAIWAN JK - Schneider Electric Components - Lead screw – Z axis, Taiwan - Driver MAXSINE - Inveter DELIXI - Rack – X,Y . Axis |
|
|
Specifications
|
|
|
X-axis stroke
|
: 1300 mm
|
|
Y axis stroke
|
: 2800 mm
|
|
Z axis stroke
|
: 200 mm
|
|
Spindle capacity
|
: 9 kw
|
|
Motor drilling
|
: 1.7 kw
|
|
Number of tool trays
|
: 12 (Replacing knives and plates)
|
|
Spindle speed
|
: 1200 rpm
|
|
Dimensions of the desk
|
: 1220 x 2440 x 200 mm
|
|
Code
|
: G code
|
|
Accuracy
|
: ±0.05 mm
|
|
Vacuum motor
|
: 7.5 kw, 250 m3/h
|
|
Working voltage
|
: 380V, 50Hz
|
|
AUTOMATIC PRINCIPLE LEARNING SYSTEM
|
|
|
HYDRAULIC LOOKING TABLE
 |
|
|
Maximum load
|
: 2 tons
|
|
Maximum lifting height
|
: 1200mm
|
|
Hydraulic pump motor
|
: 2HP
|
|
Machine size
|
: 2200 × 1000 × 500
|
|
Weight
|
: 800 kg
|
|
HYDRAULIC LOOKING TABLE
 |
|
|
Feeding width
|
: 1300mm
|
|
Feeding length
|
: 2500mm
|
|
Workpiece weight
|
: 50 Kg
|
